I2S board for OPPO 93,103 and 203

BD player Mod. 2022. 2. 15. 11:33
728x90

I recently tested I2S board to the Oppo 93, which had been overlooked so far.

The result is great success.

  PCM and DSD audio data is transmitted to the DAC through the I2S board very smoothly. Following the , Now it was confirmed that the 93 is also possible to adapt i2s board as well as to Oppo 103 and 203



Currently, the market price of used Oppo 93 is very cheap at less than 200 $, so it can be a superb SACD transport device if you buy and modify it.



In fact, the £5000 PS audio direct stream transport from PS Audio was actually made using an Oppo player.



And all Blu-ray discs except 4K Blu-ray discs can be played in OPPO 93, so it can also be used as a video source device.



---------------------------------------------

지금까지 간과 하고 있었던 오포 93에 I2S 보드를 장착하여 테스트 해 보았다. 결과는 대 성공.

아주 스무스하게 I2S 단자를 통해 DAC에 오디오 데이터가 전해진다. 오포 103 및 203에 이어 93도 가능하다는 사실을 확인했다.

현재 오포 93의 시중 가격은 20만원 이하로 매우 저렴하므로 이를 구입하여 개조 하면 훌륭한 SACD 트랜스포트 기기가 될수 있다. 사실 PS audio에서 나온 5000 파운드 짜리 PS audio direct stream transport도 실은 오포 플레이어를 그대로 사용하여 만들어 졌다.  여기에 4K blu ray disck를 제외한 모든 블루레이 디스크를 고품질로 재생할 수 있어 비디오 소스기기로의 사용도 같이 가능한 것이 장점이다.

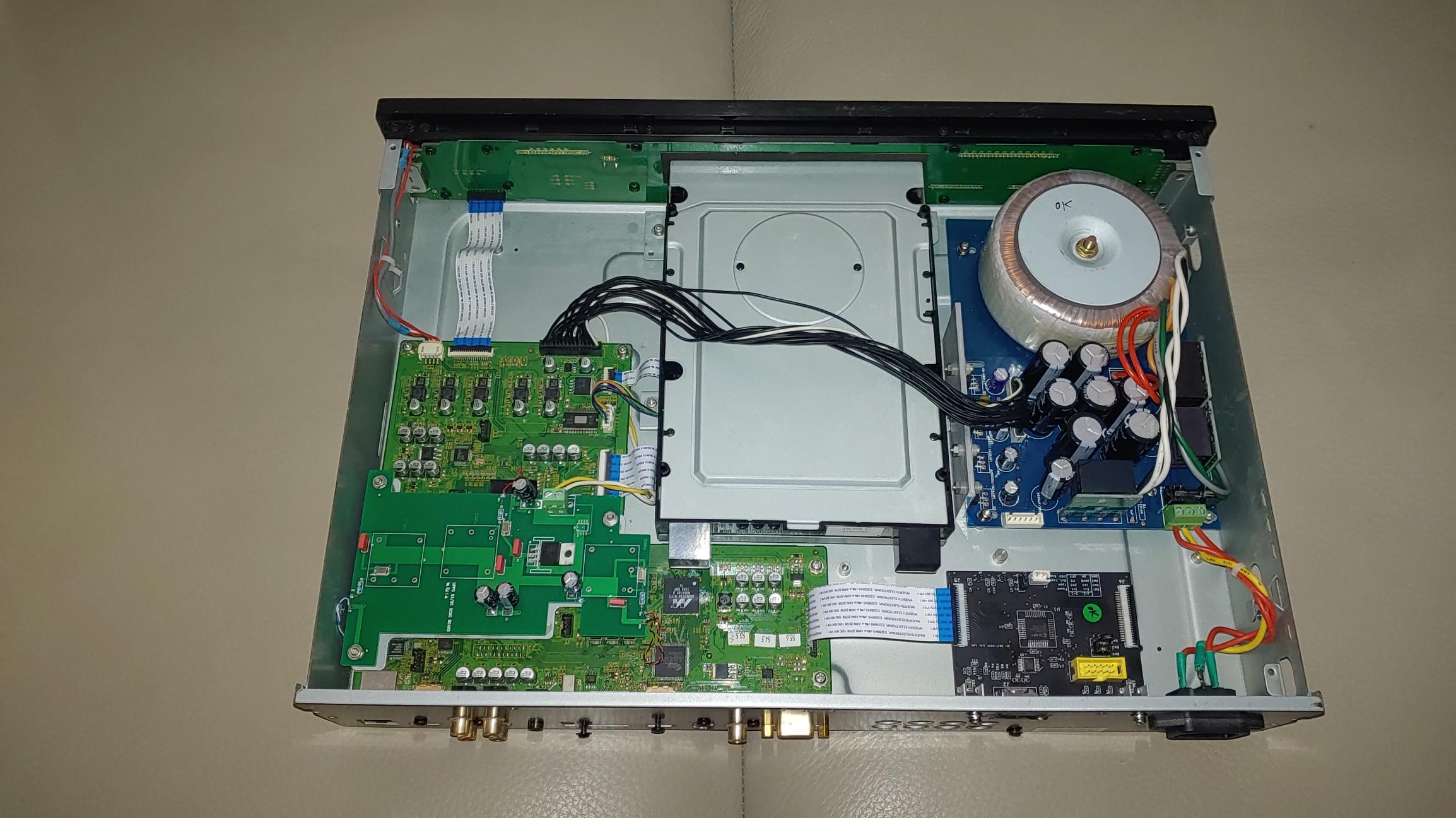

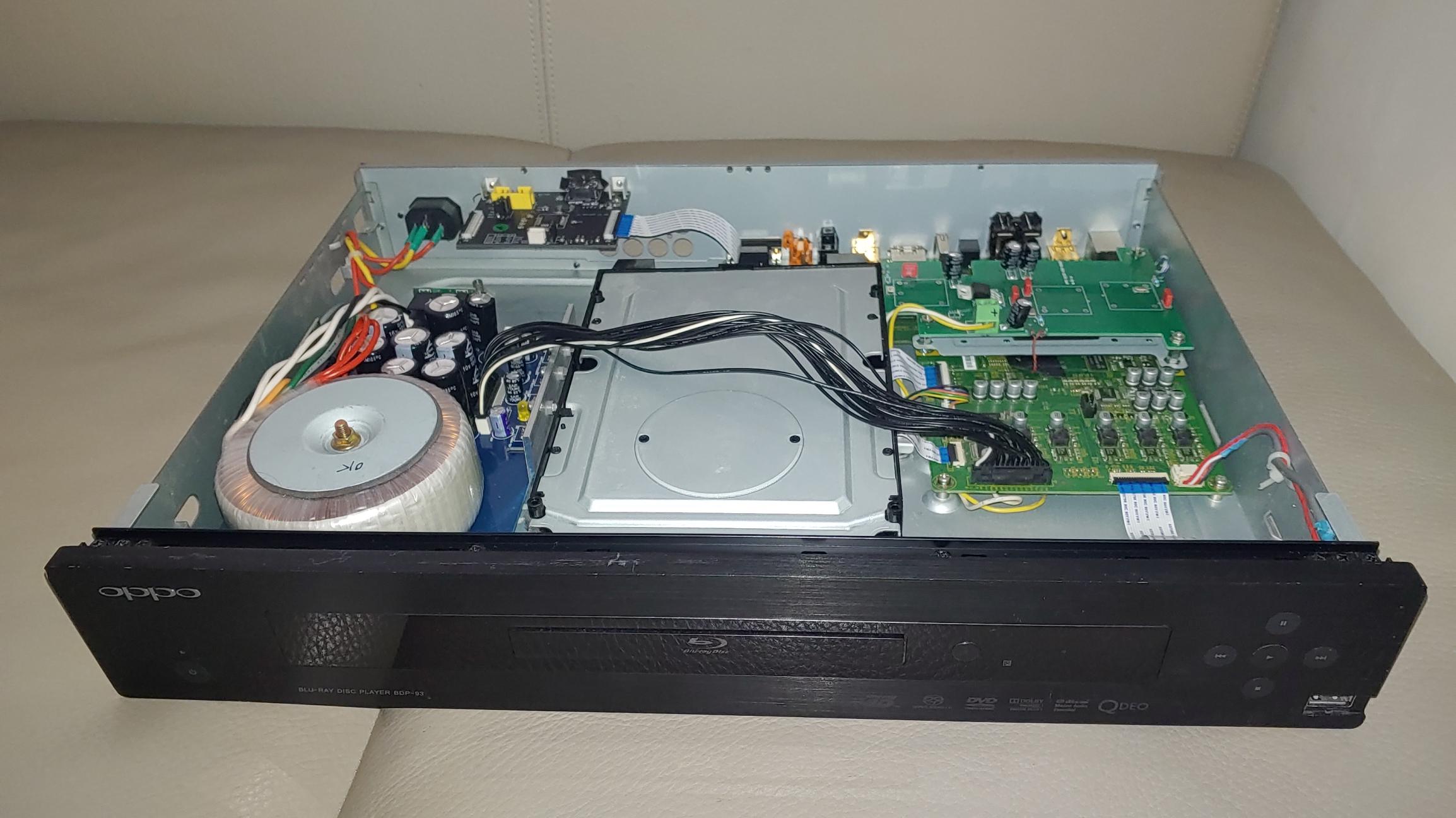

리니어 전원과 3개의 TCXO clock을 장착하고 I2S 보드를 장착한  OPPO 93 플레이어.

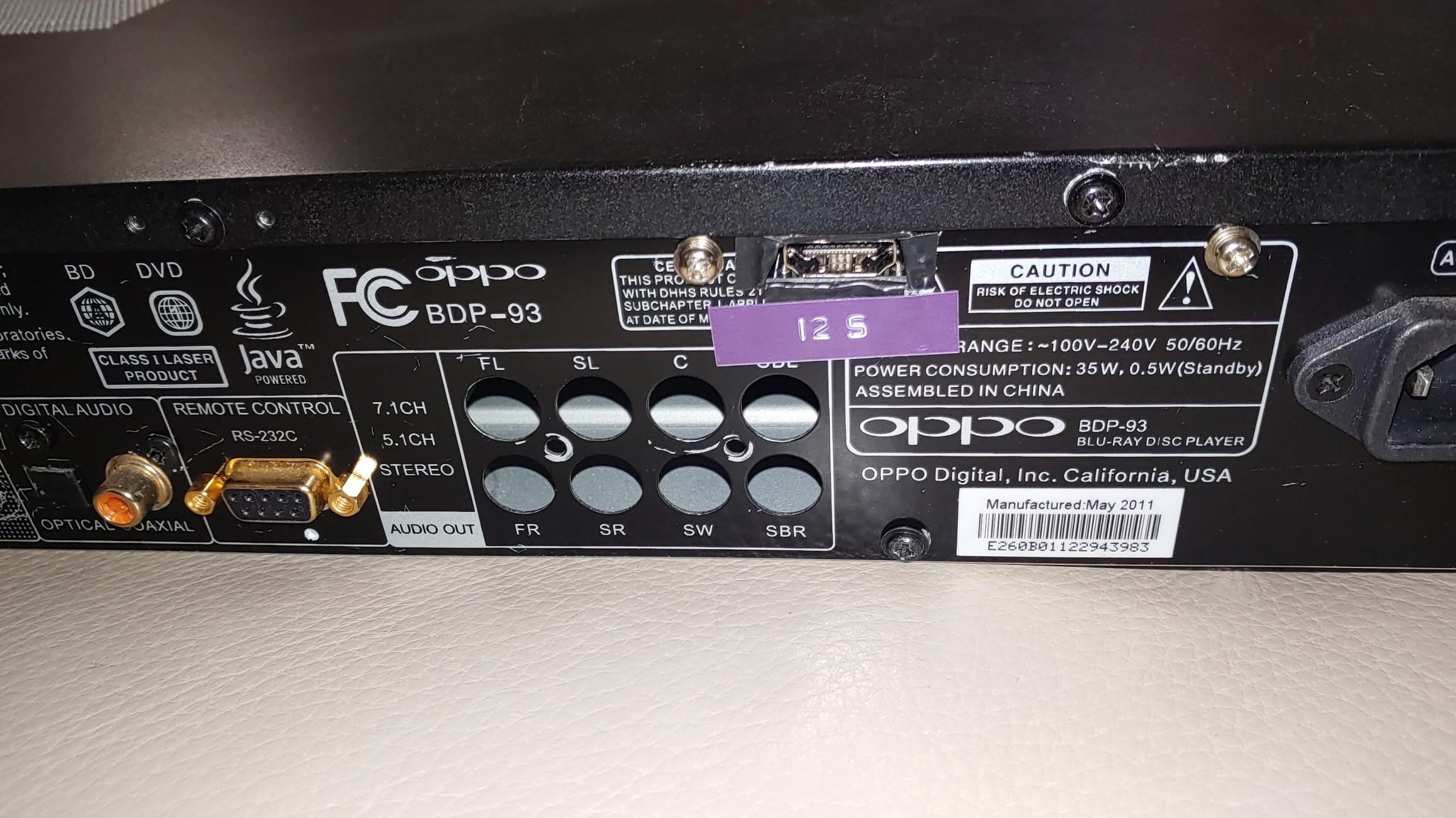

뒤 패널을 뚫어 HDMI 단자의 모습을 가진 I2S 보드를 설치 했다.

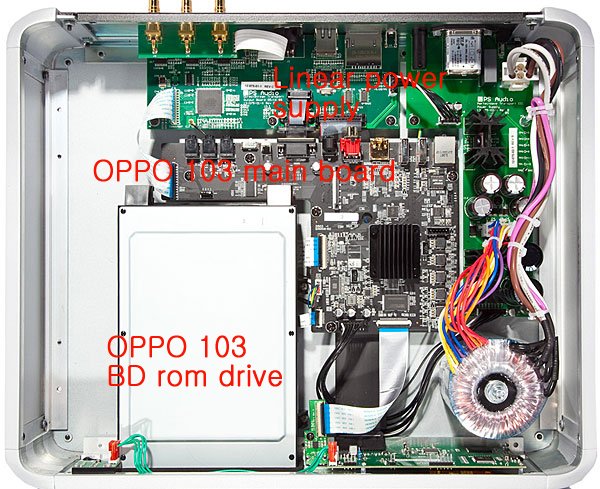

오포 103을 그대로 안에 넣고 리니어 전원을 붙여 만든 5000 파운드 짜리 PS audio direct stream transport
