Revox B77 ( PR99) boards upgrade project

Audio recording 2020. 11. 25. 09:15

Record and Reproduce amplifier board design

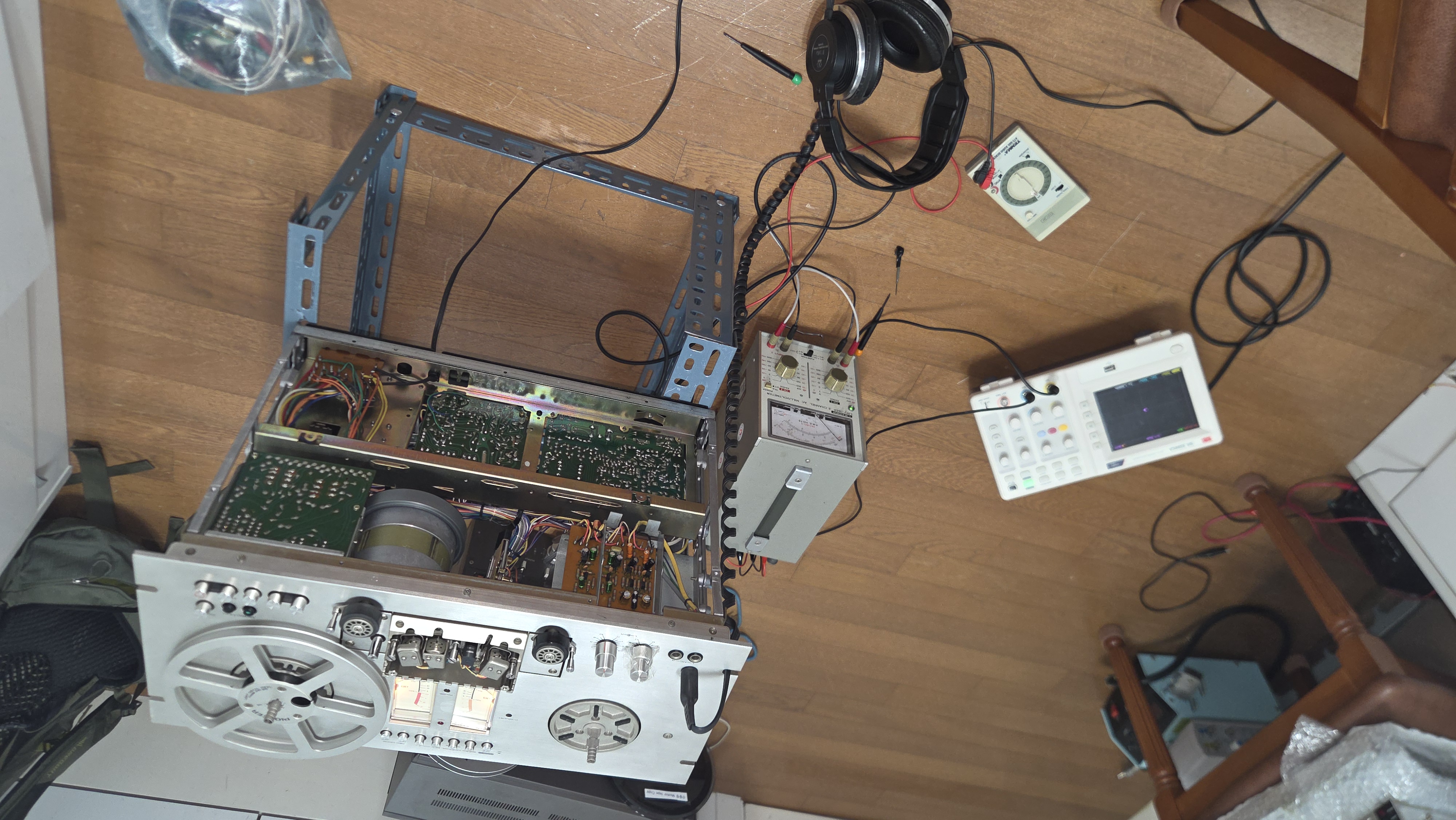

record board wave form test

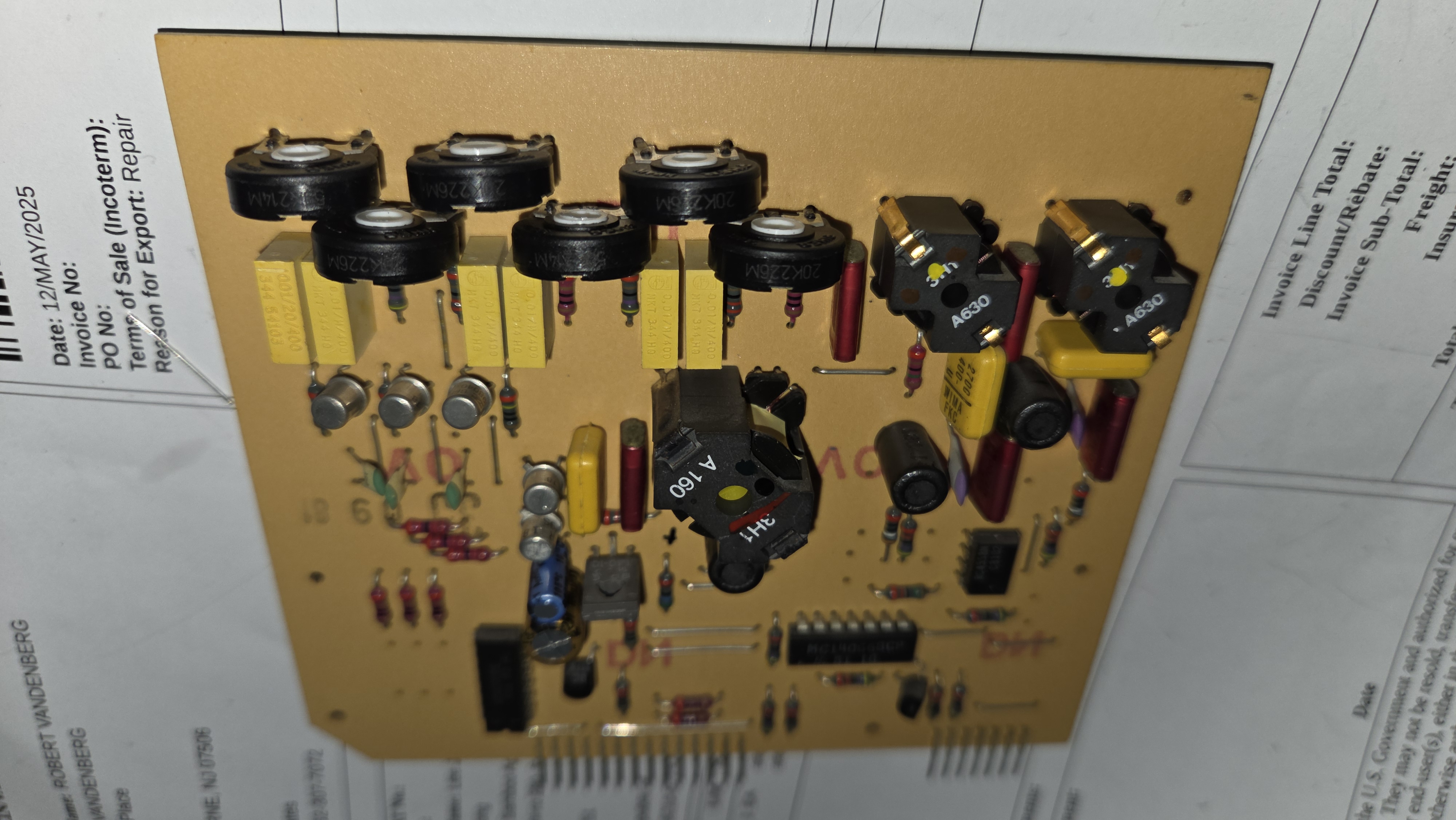

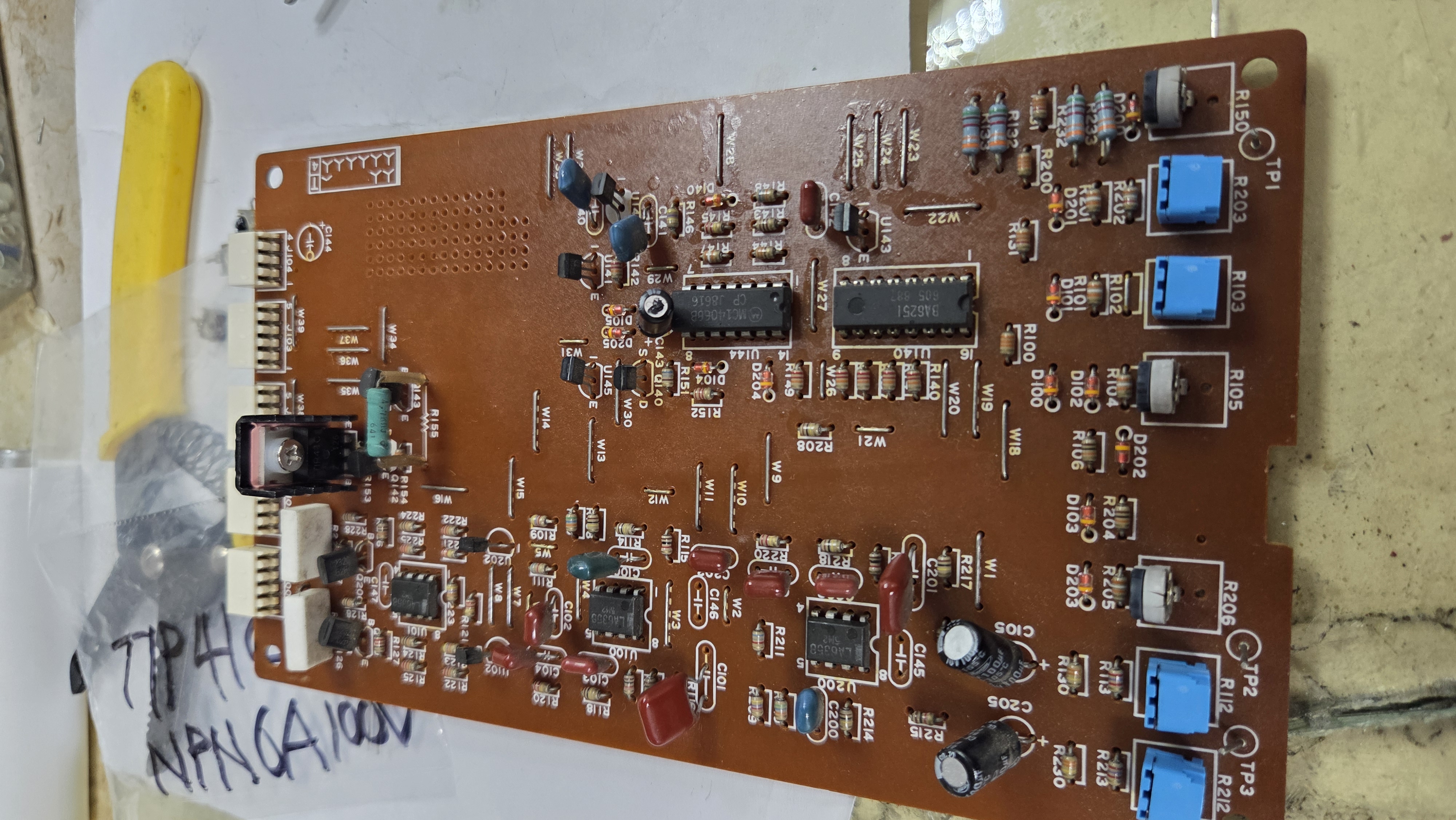

                                               new reproduce board

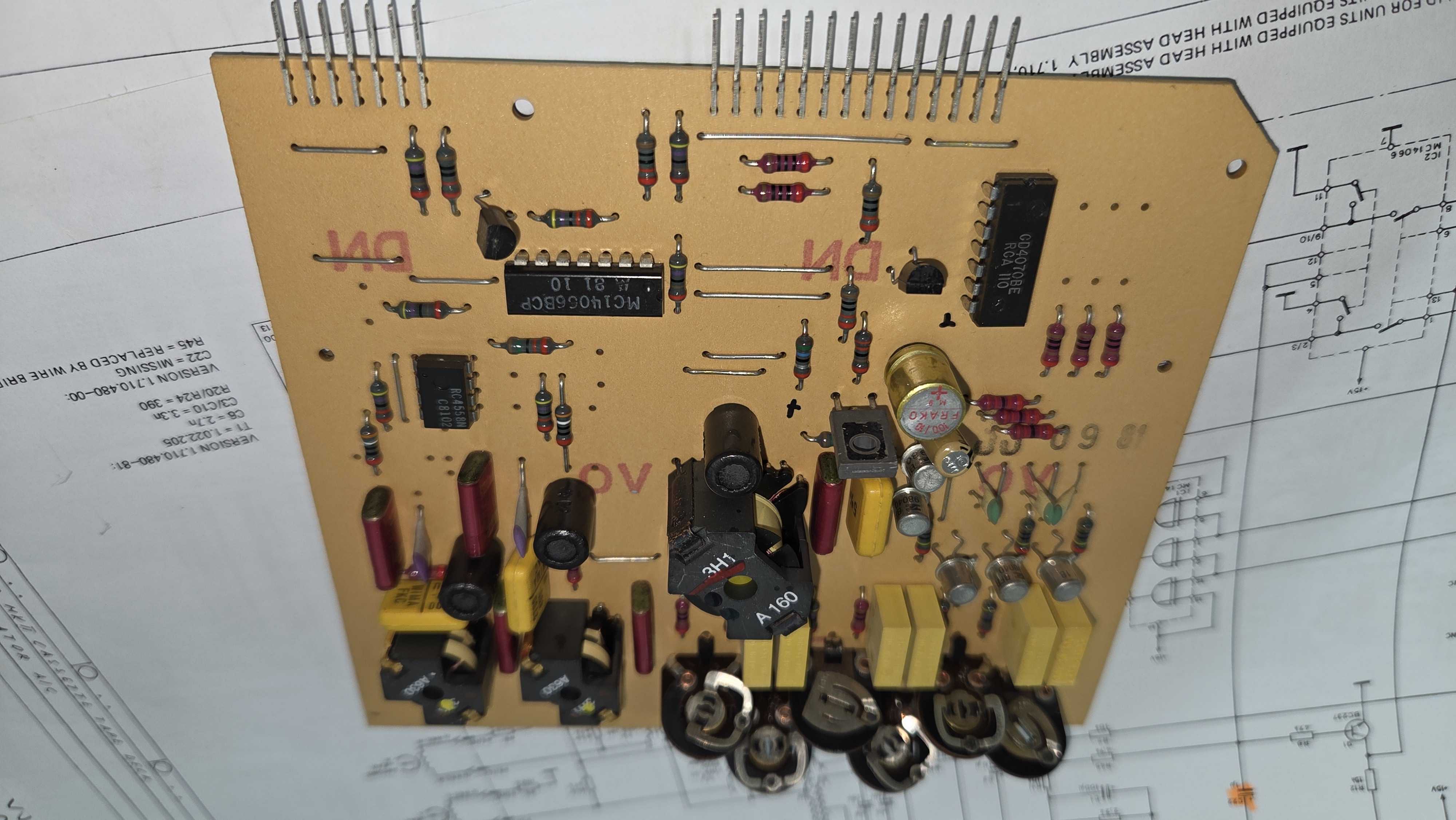

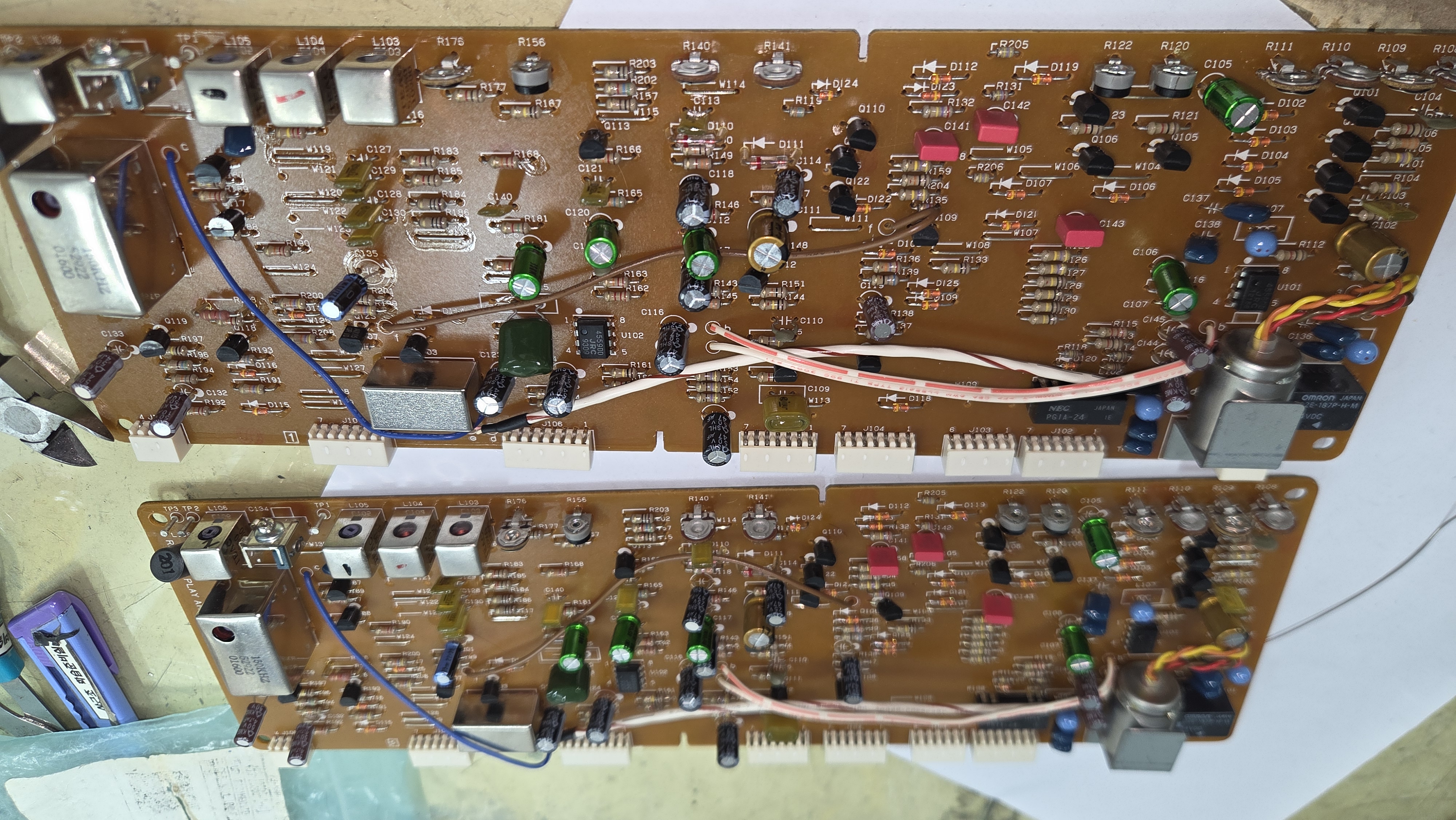

new record board





-------------------------------- ---------------------------------

I also upgraded many parts in other boards such as



1. All electrolytic capacitors are upgraded to Panasonic Organic Polymer Capacitor (OSC).



2. All brittle nude trimmers were upgraded with sealed gold plated Copal (Japan) trimmers or other good sealed trimmers such as Bouns .



3. Tantalum capacitors in signal path are upgraded with German Wima Film capacitors.

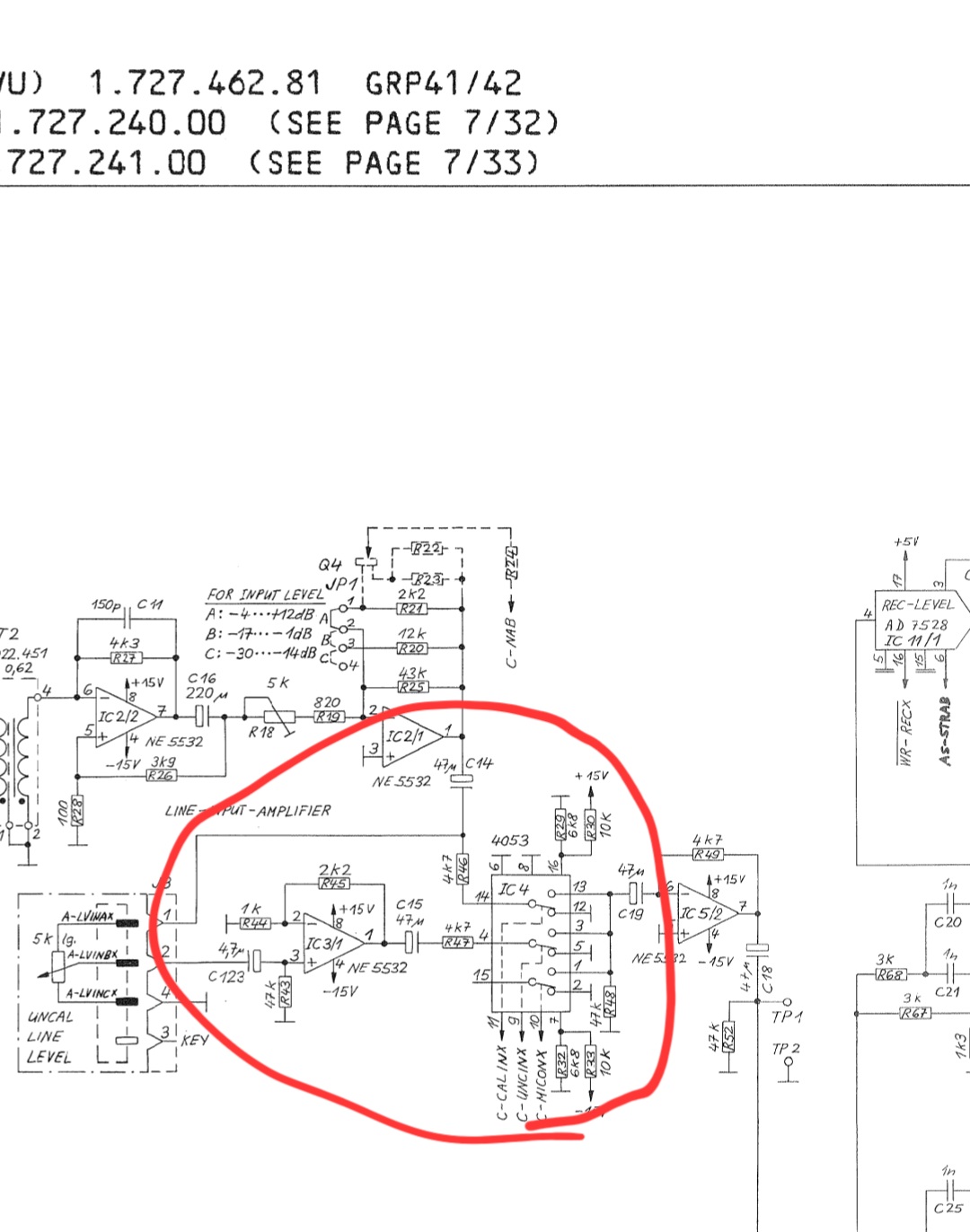

upgraded input amplifier

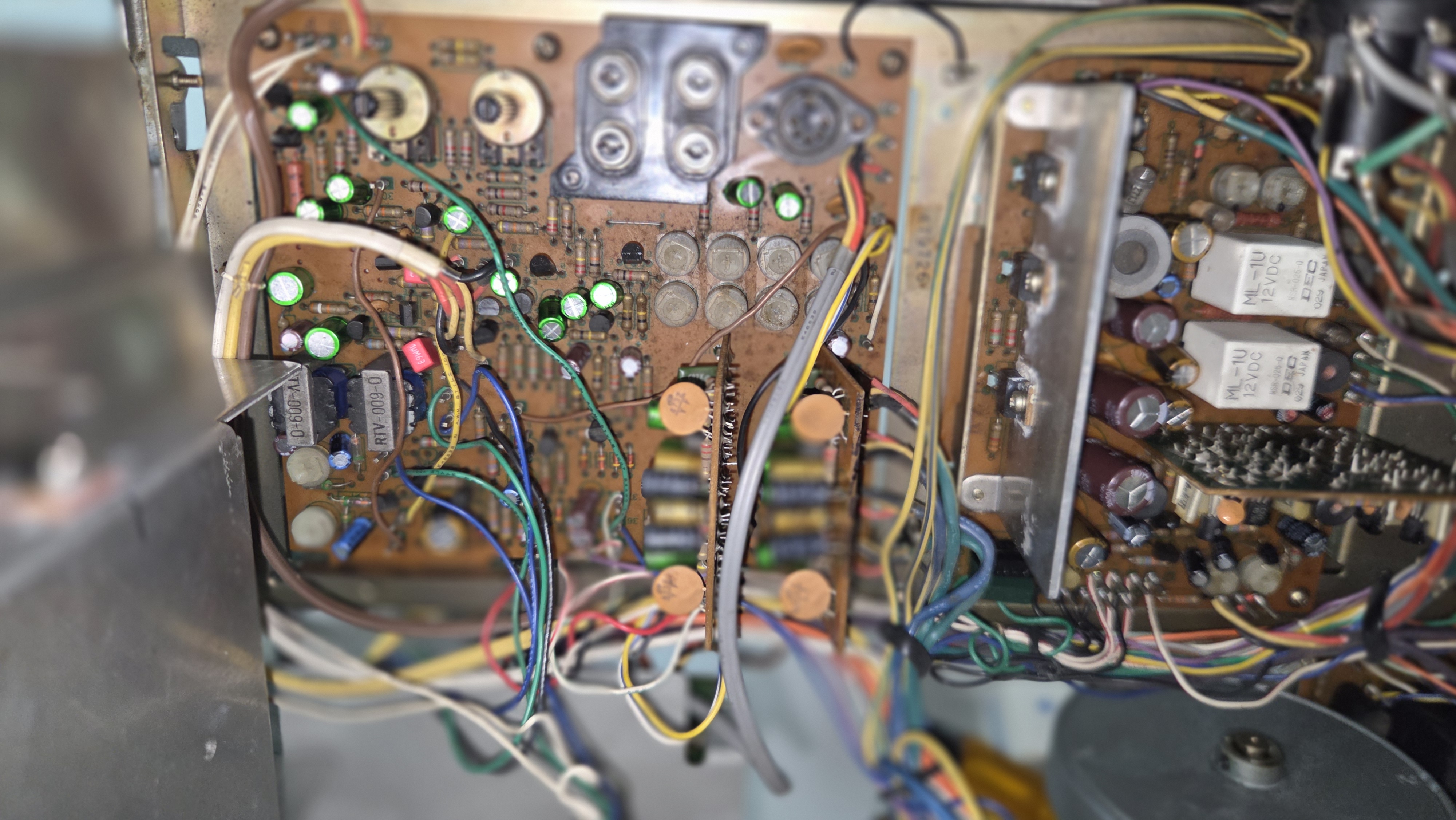

upgraded monitor amplifier board

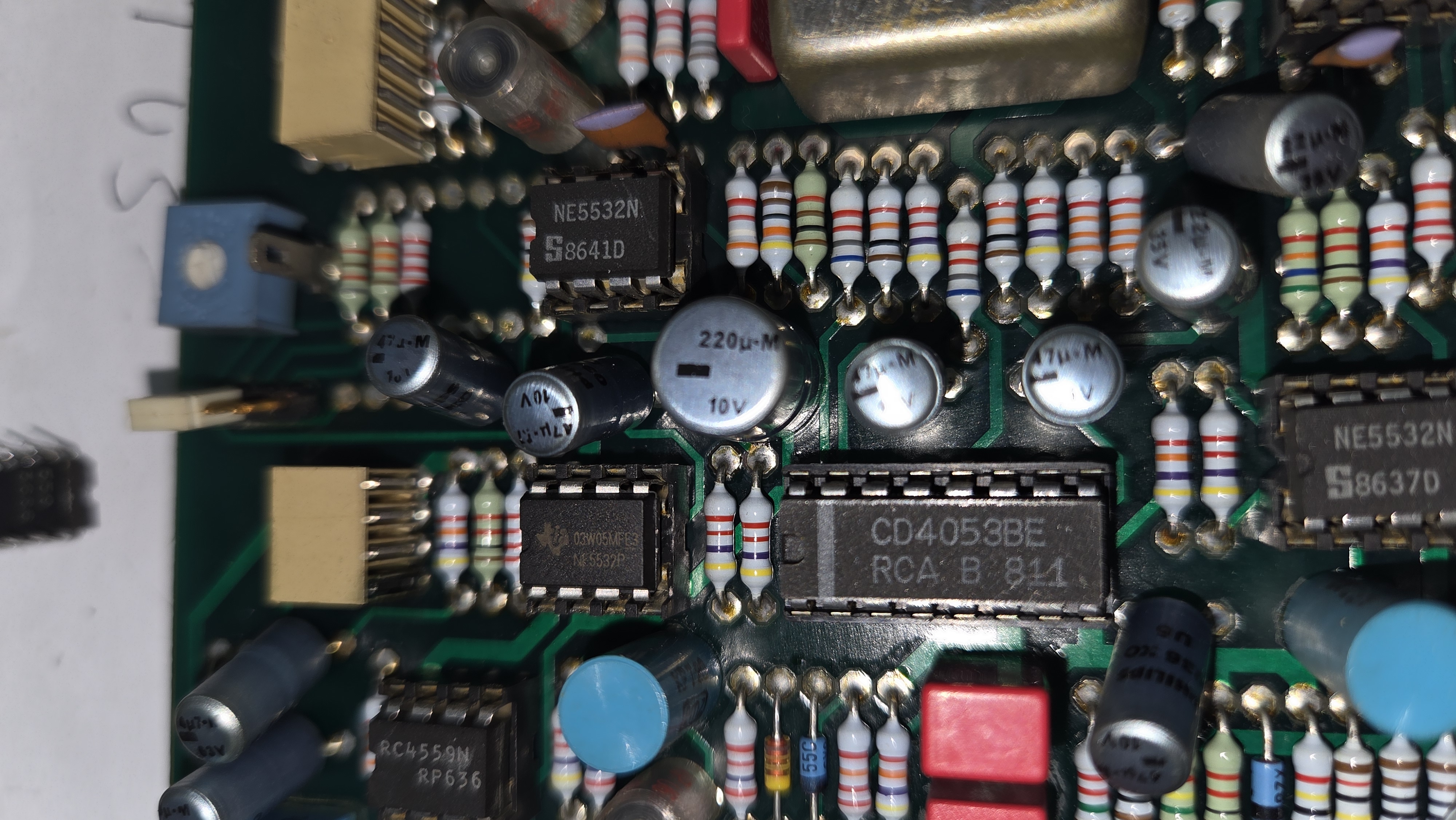

OP Amps are upgraded to NE5534

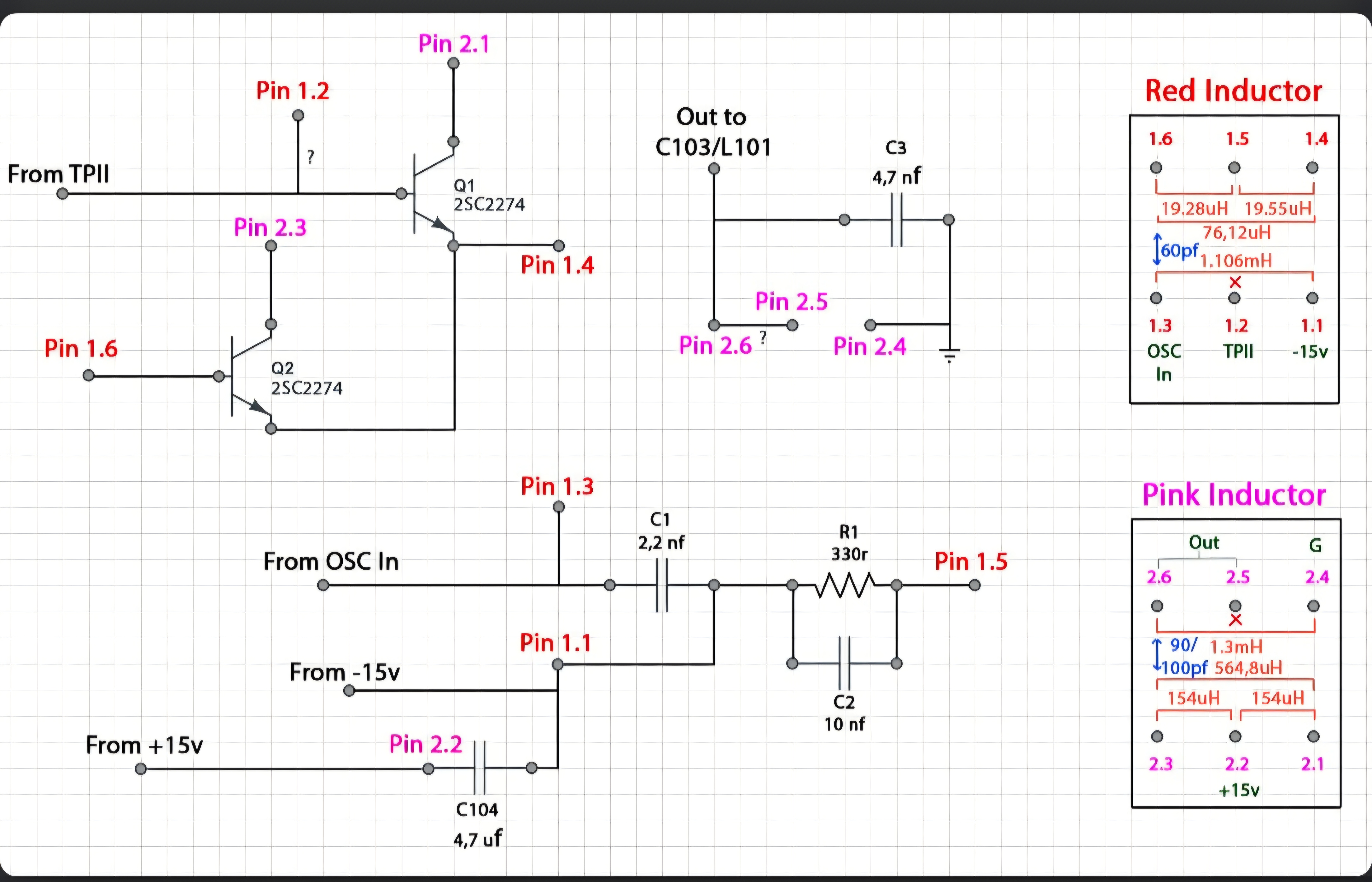

upgraded 150Khz bias frequncy osillator board

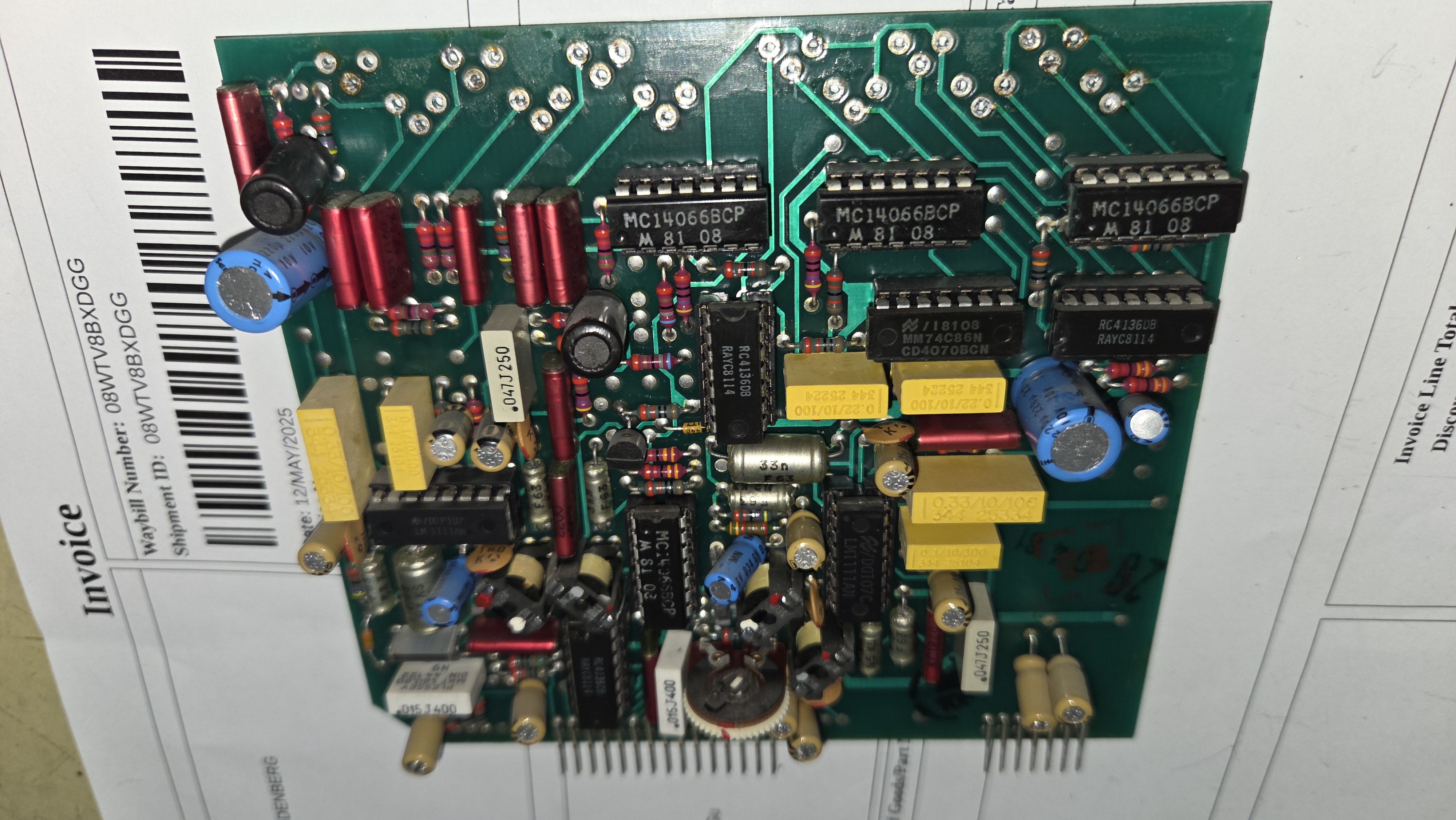

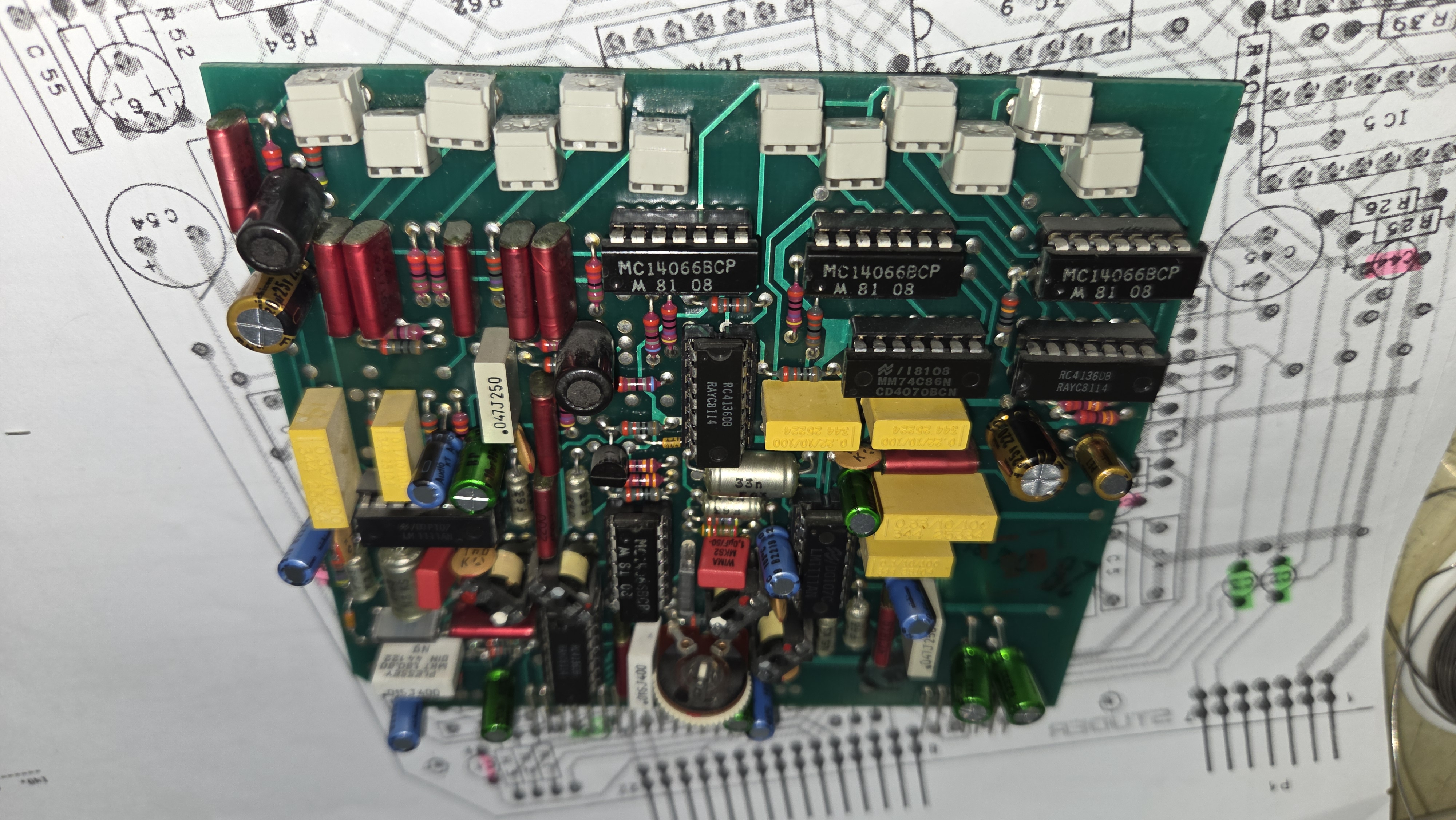

Tape drive control boad before and after upgrade

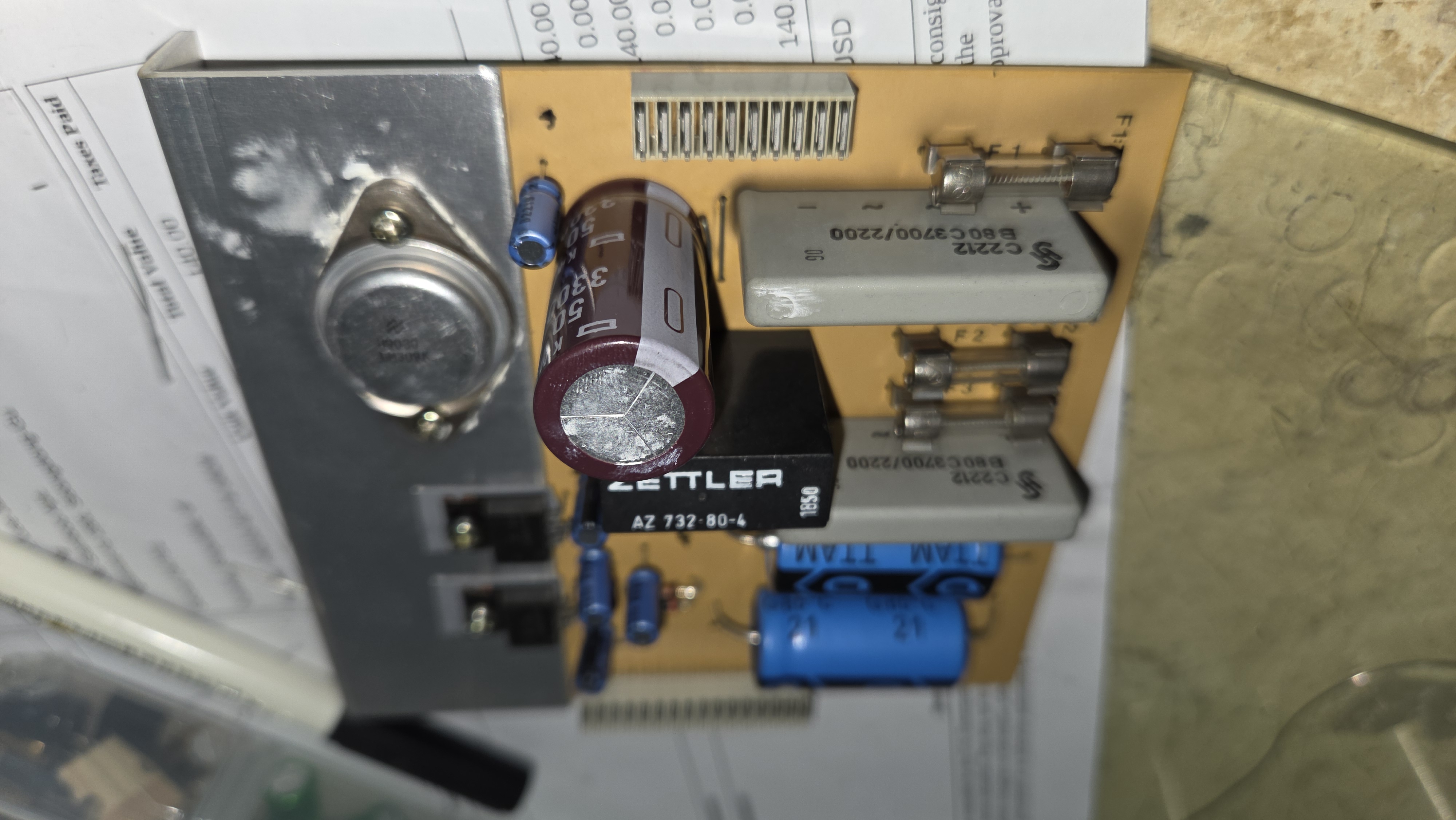

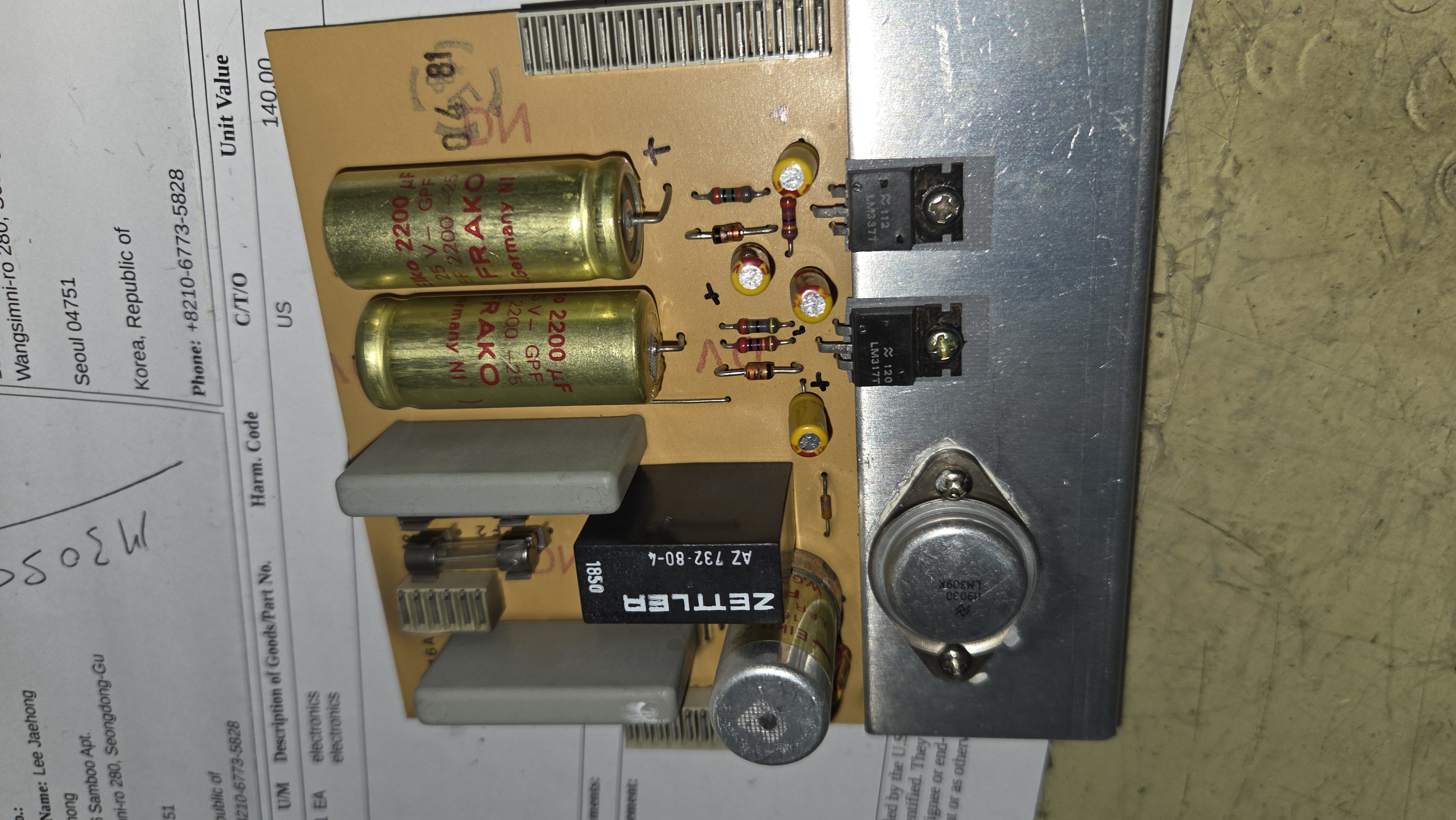

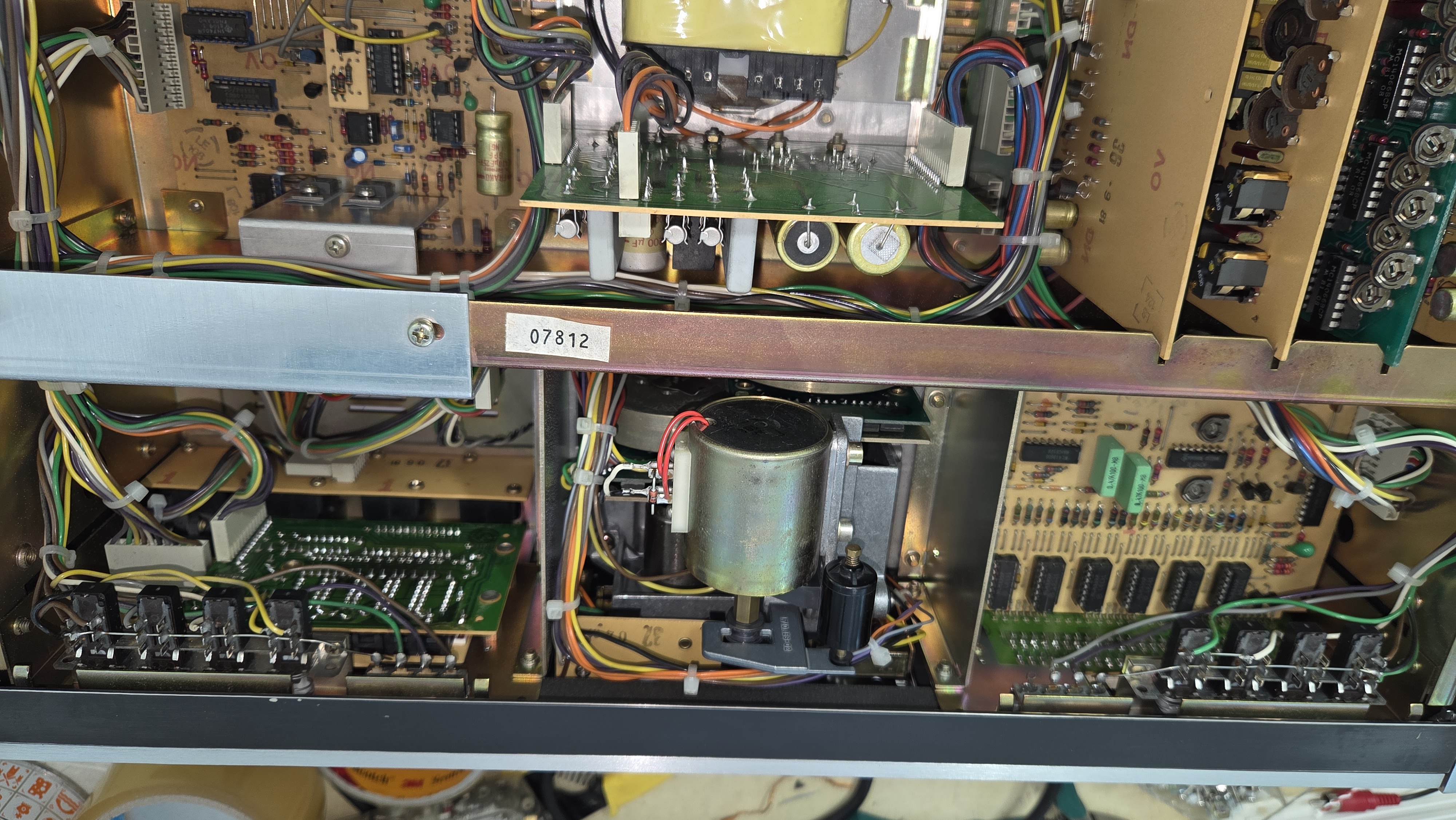

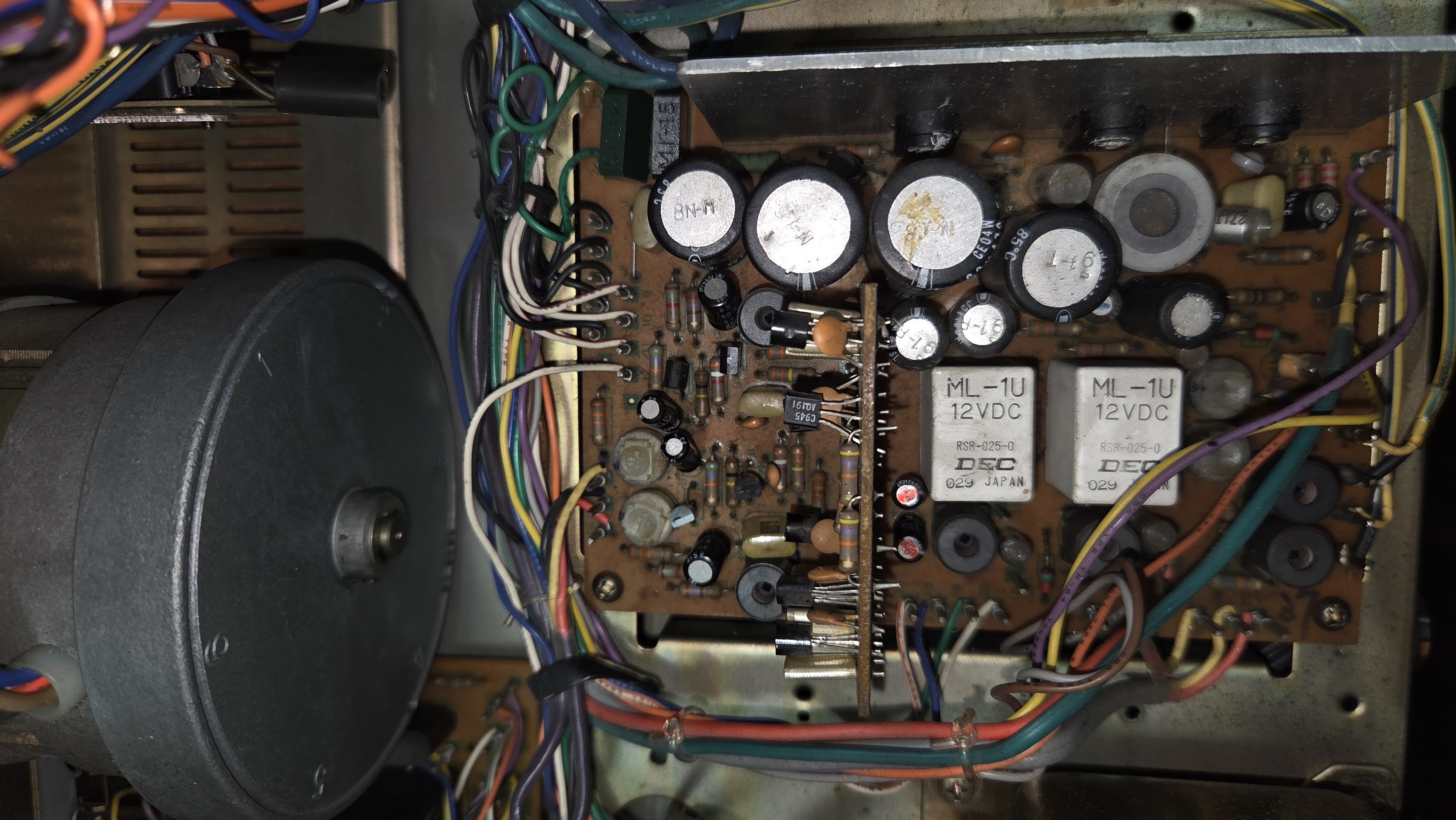

 capstan motor drive board before and after upgrade



Aux in and output sockets before and after upgrade .

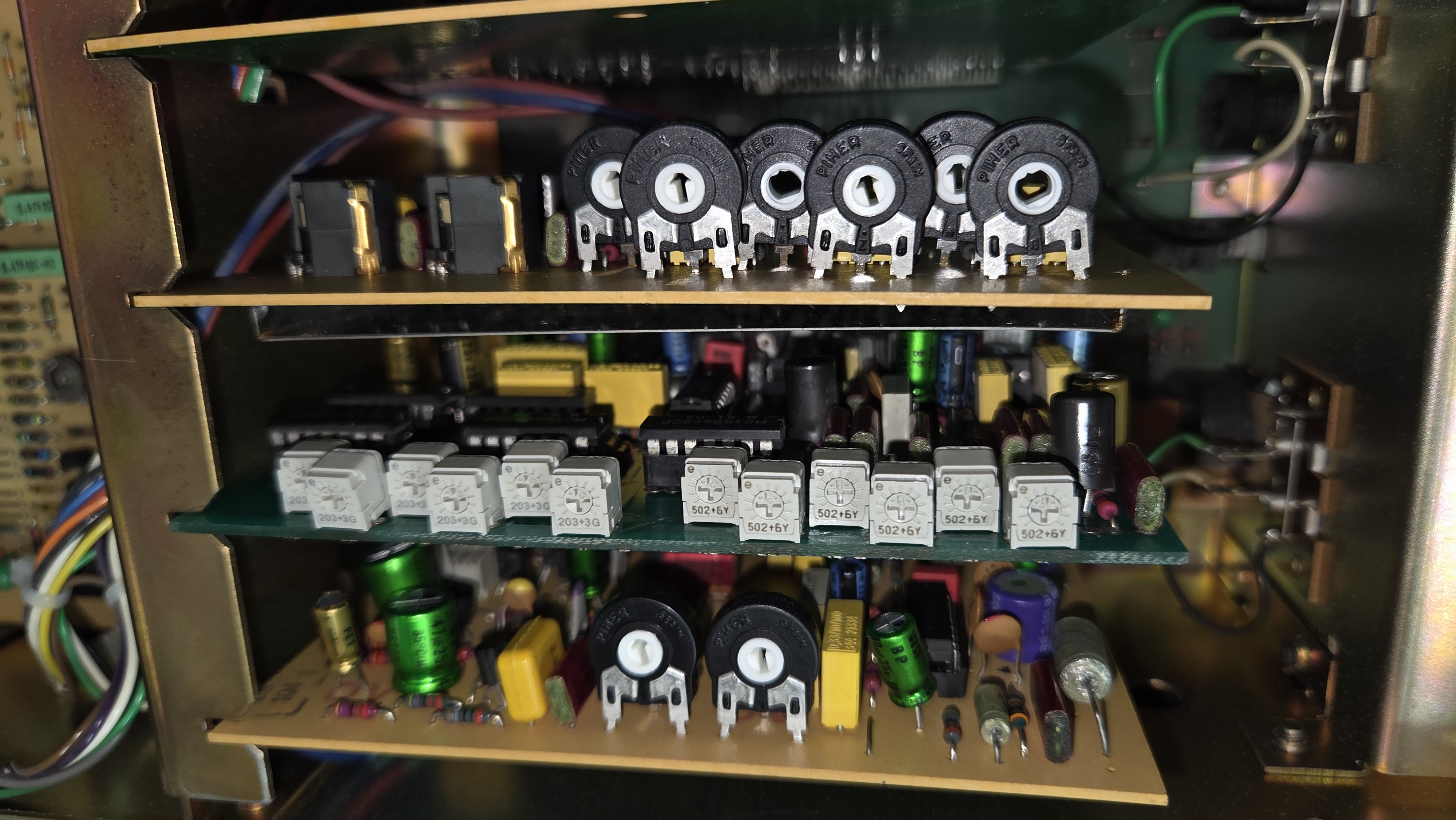

Unnessary trimmer were baypassed and upgraded with gold plated ones.

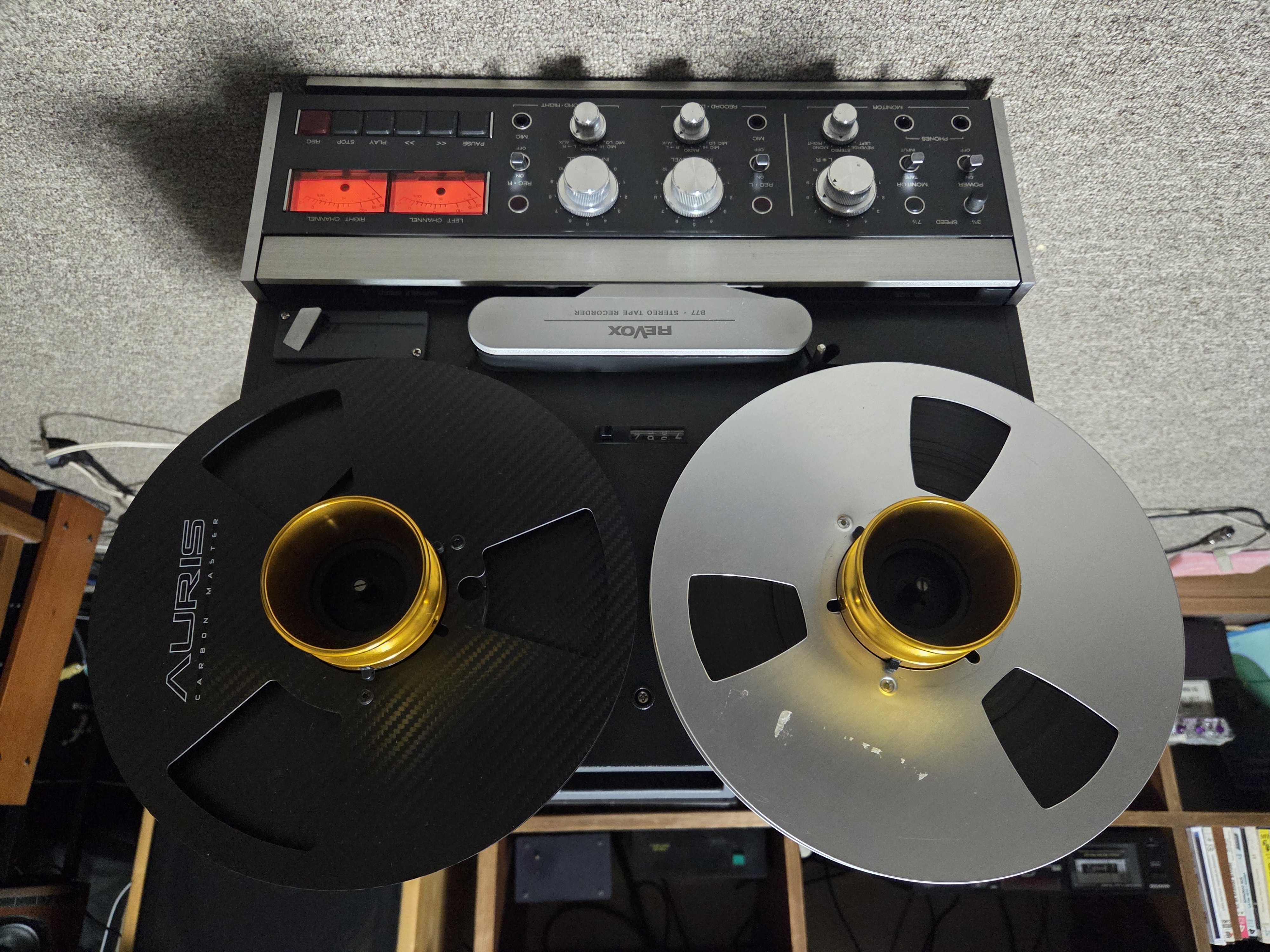

 all finished revox B77 and PR99
