new boards for Revox B77 and PR99

Audio recording 2020. 11. 15. 12:27
728x90

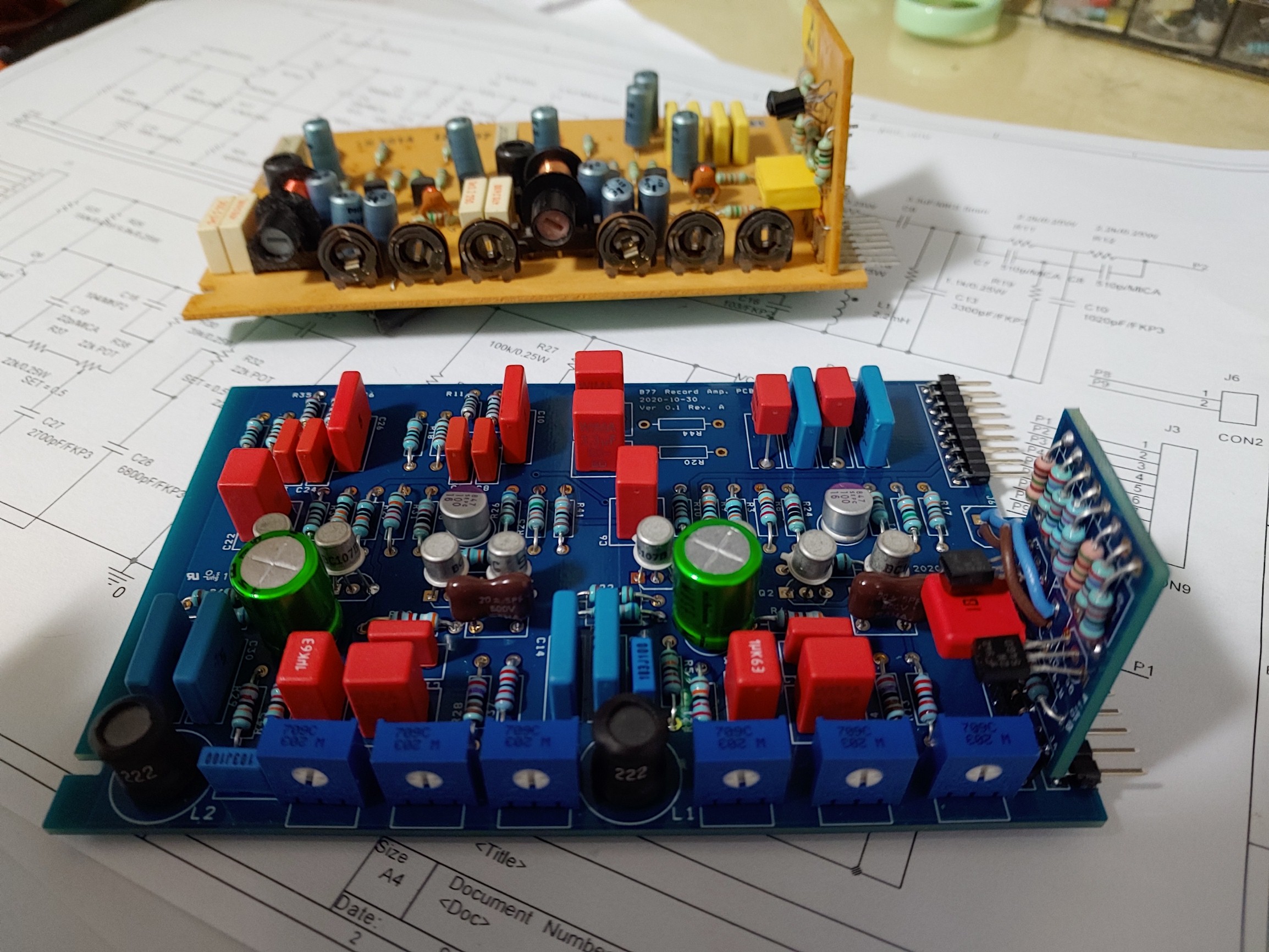

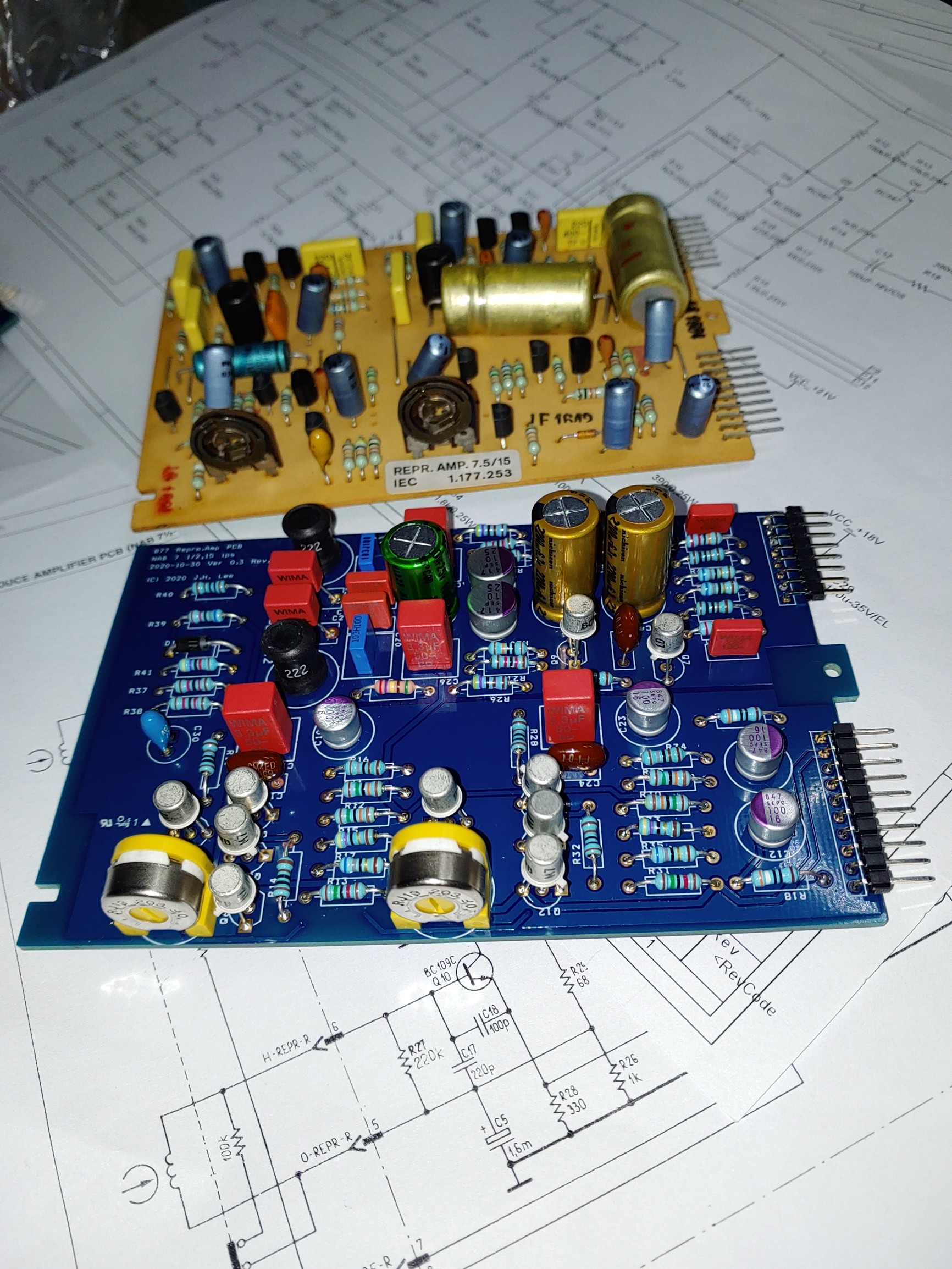

I made new PCB for reproduce amplifier and recording amplifier .



Since these two boards are critical in sound quality.



Both PCBs can be mounted in followings



B77 and PR 99 15 ips , 7 1/2 ips high speed 2 track NAB

B77 and PR 99 15 ips , 7 1/2 ips high speed 2 track CCIR



B77 and PR 99 7 1/2 ips , 3 3/4 Standard speed 2 track NAB



B77 7 1/2 ips, 3 3/4 Standard speed 4 track NAB





Gold plated Epoxy glass PCB.



1 % error metal film resistors ( 1/4 w)



Wima film capacitors , silver mica capacitors ( 22 pF)



Panasonic Organic Polymer capacitors ( instead of electrolytic capacipors if possible )



Nichicon Muse top of audio grade electrolytic capacitors



Copal gold plated trimmer



matched pair metal can transistors ( Hfe selected by hands )
