Revox B77 ( PR99) boards upgrade project

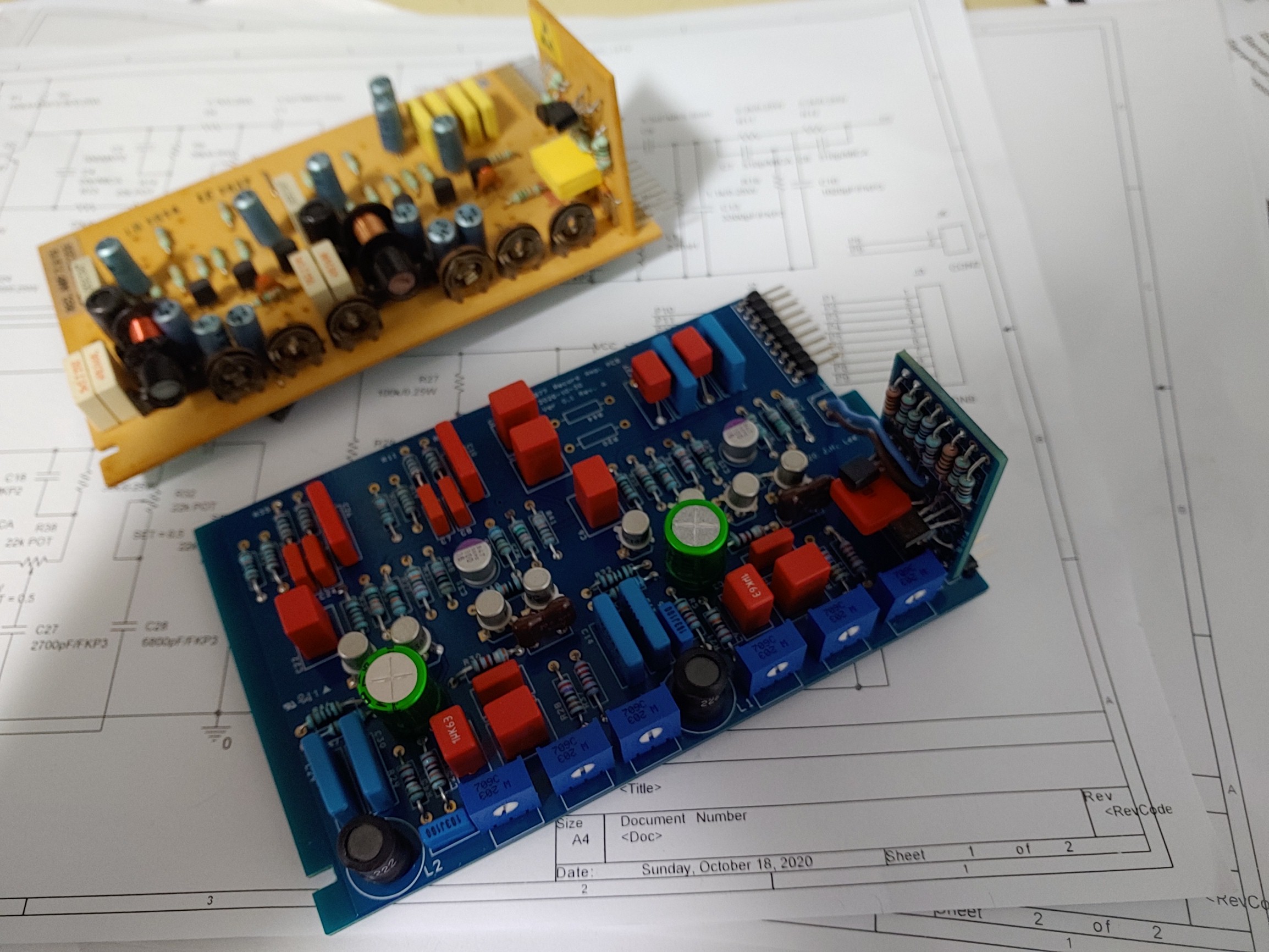

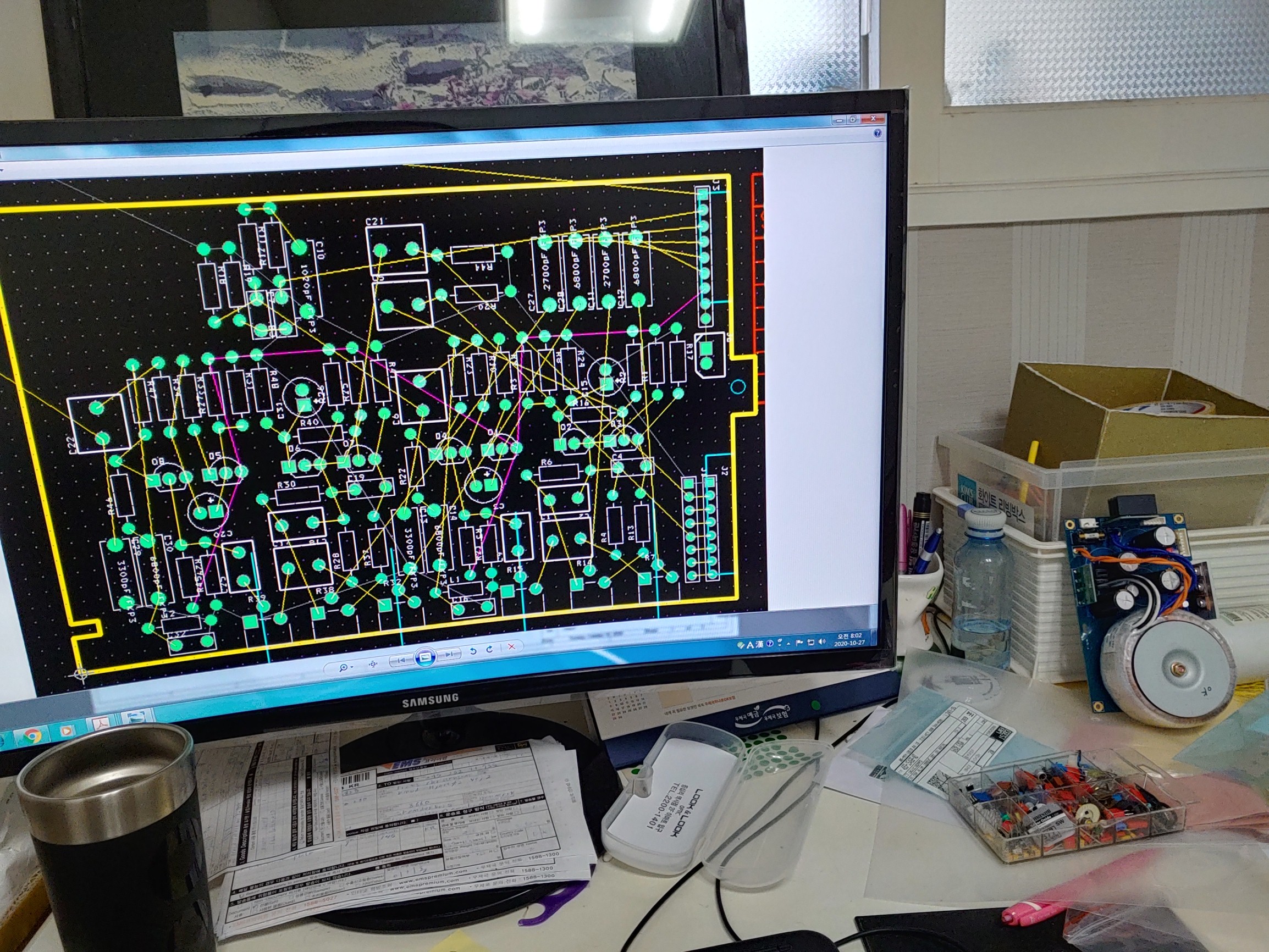

Record and Reproduce amplifier board design

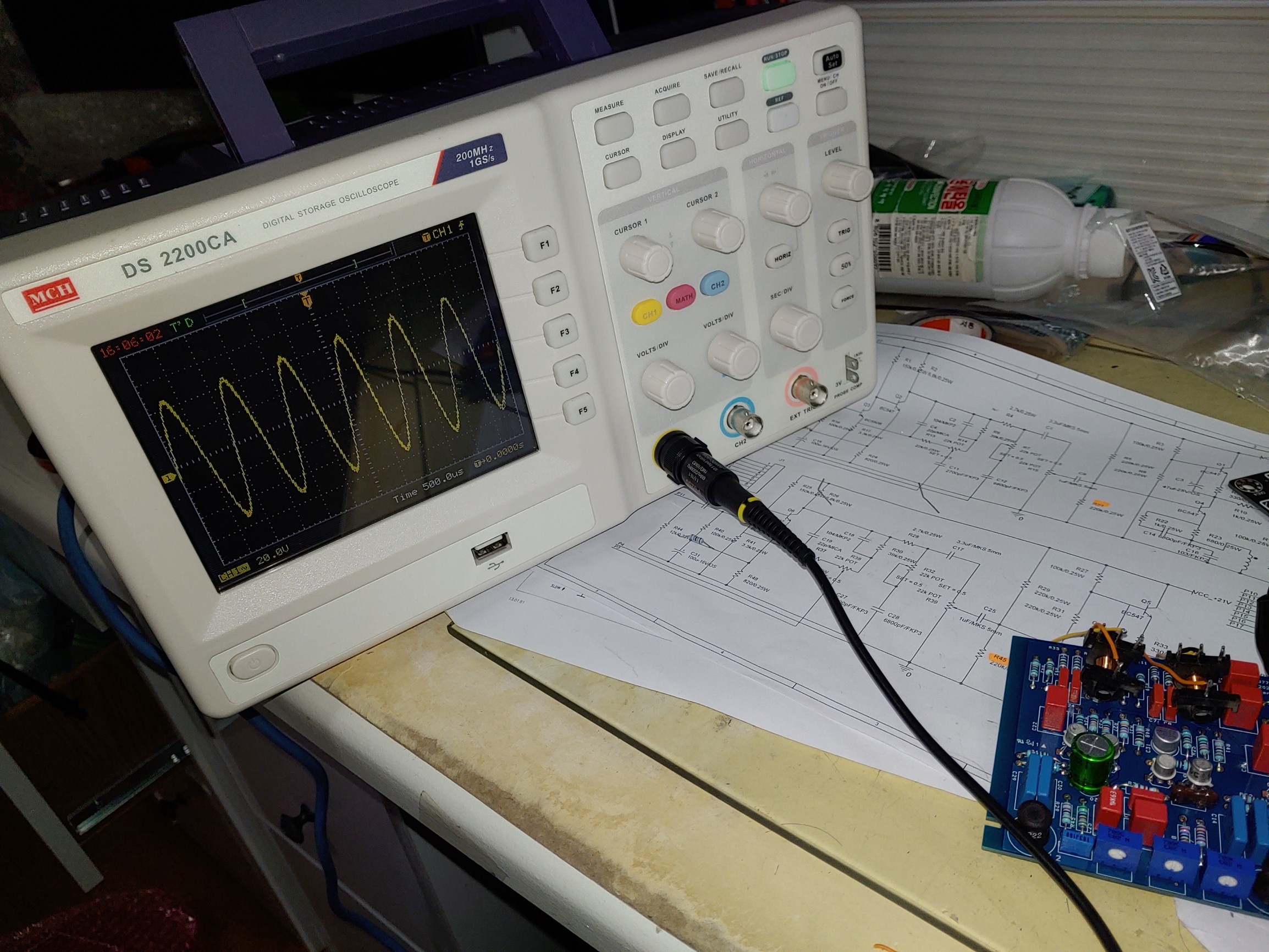

record board wave form test

                                               new reproduce board

new record board





-------------------------------- ---------------------------------

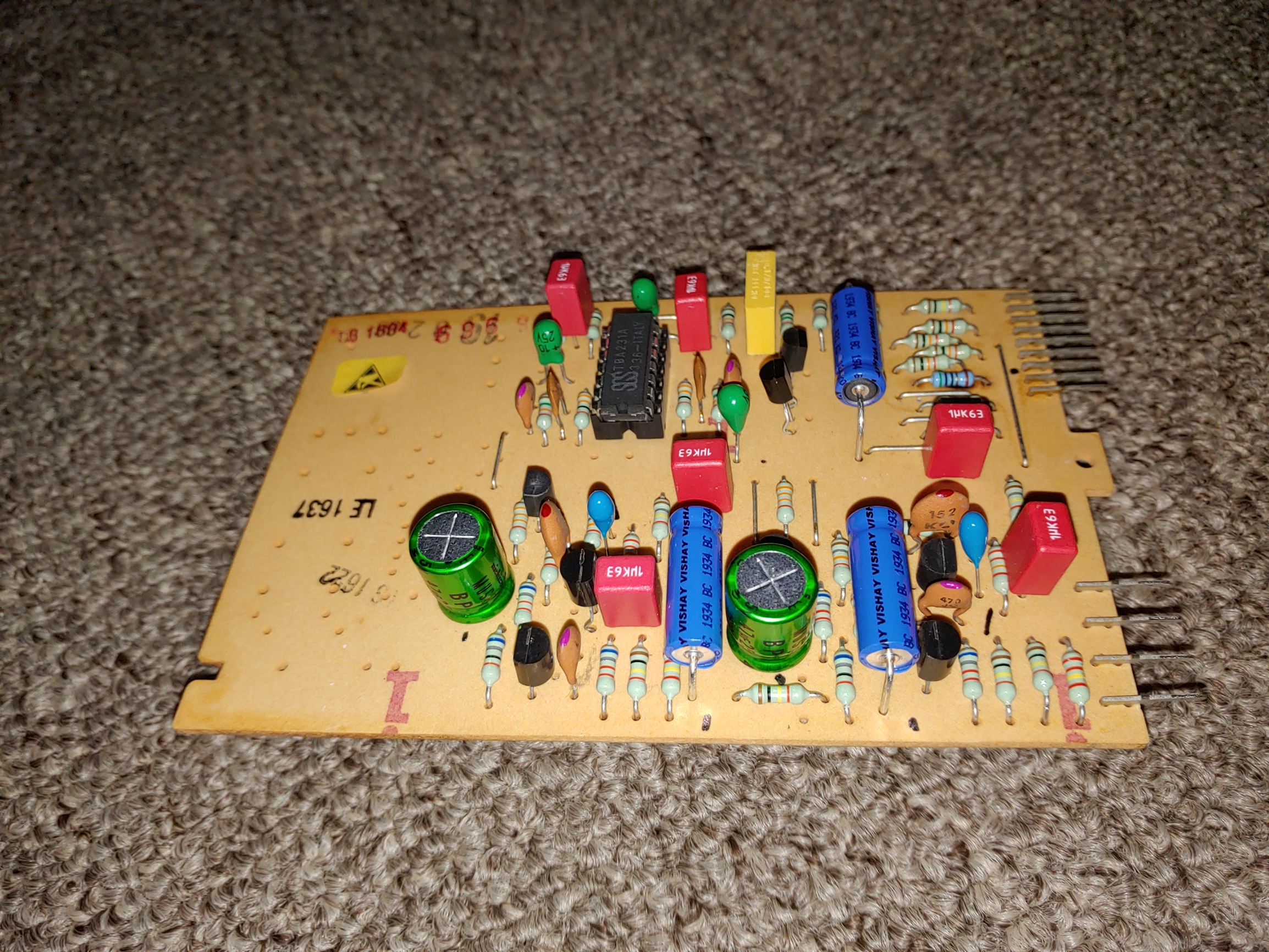

I also upgraded many parts in other boards such as



1. All electrolytic capacitors are upgraded to Panasonic Organic Polymer Capacitor (OSC).



2. All brittle nude trimmers were upgraded with sealed gold plated Copal (Japan) trimmers or other good sealed trimmers such as Bouns .



3. Tantalum capacitors in signal path are upgraded with German Wima Film capacitors.



upgraded input amplifier

upgraded monitor amplifier board

OP Amps are upgraded to NE5534

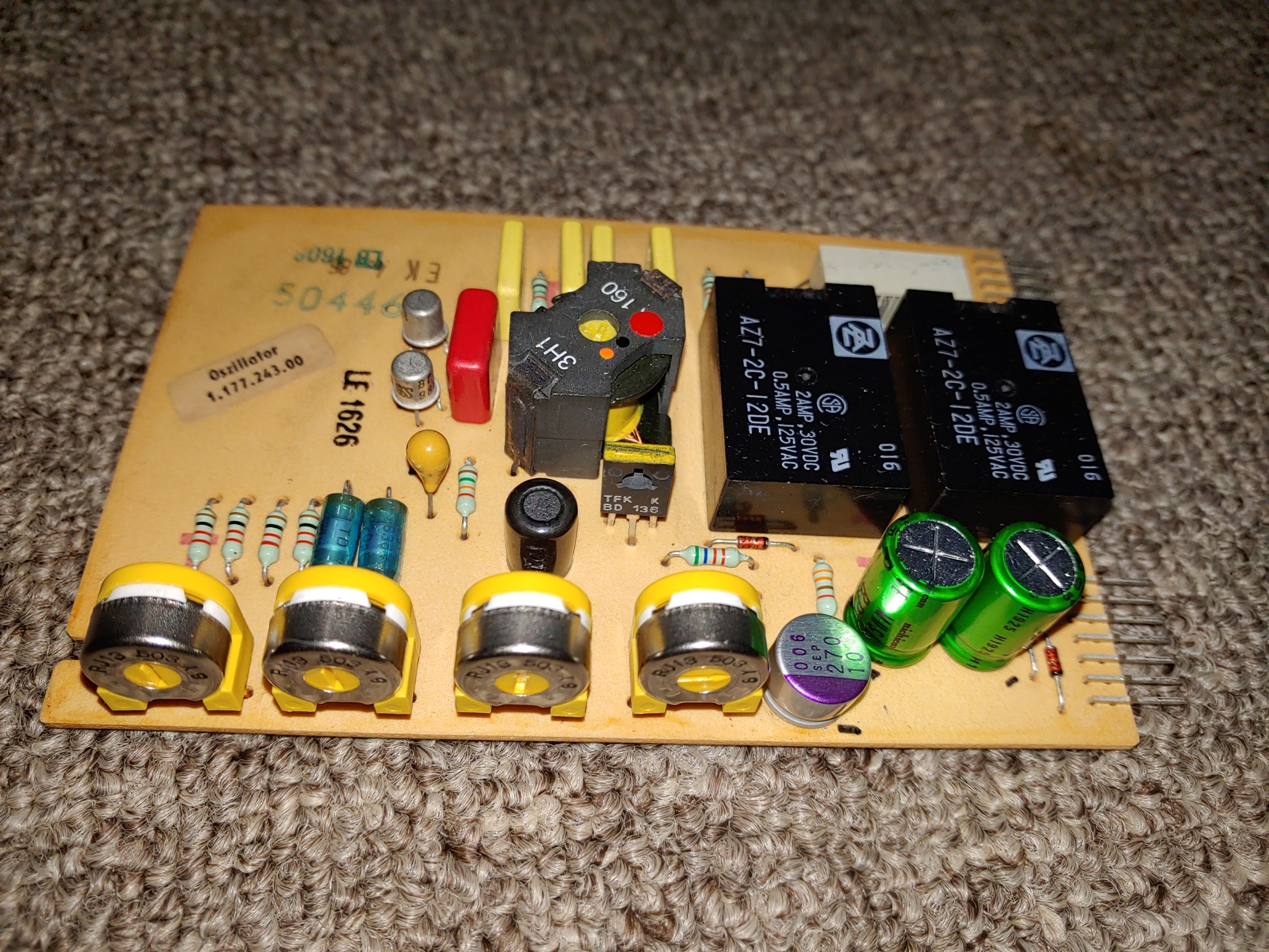

upgraded 150Khz bias frequncy osillator board

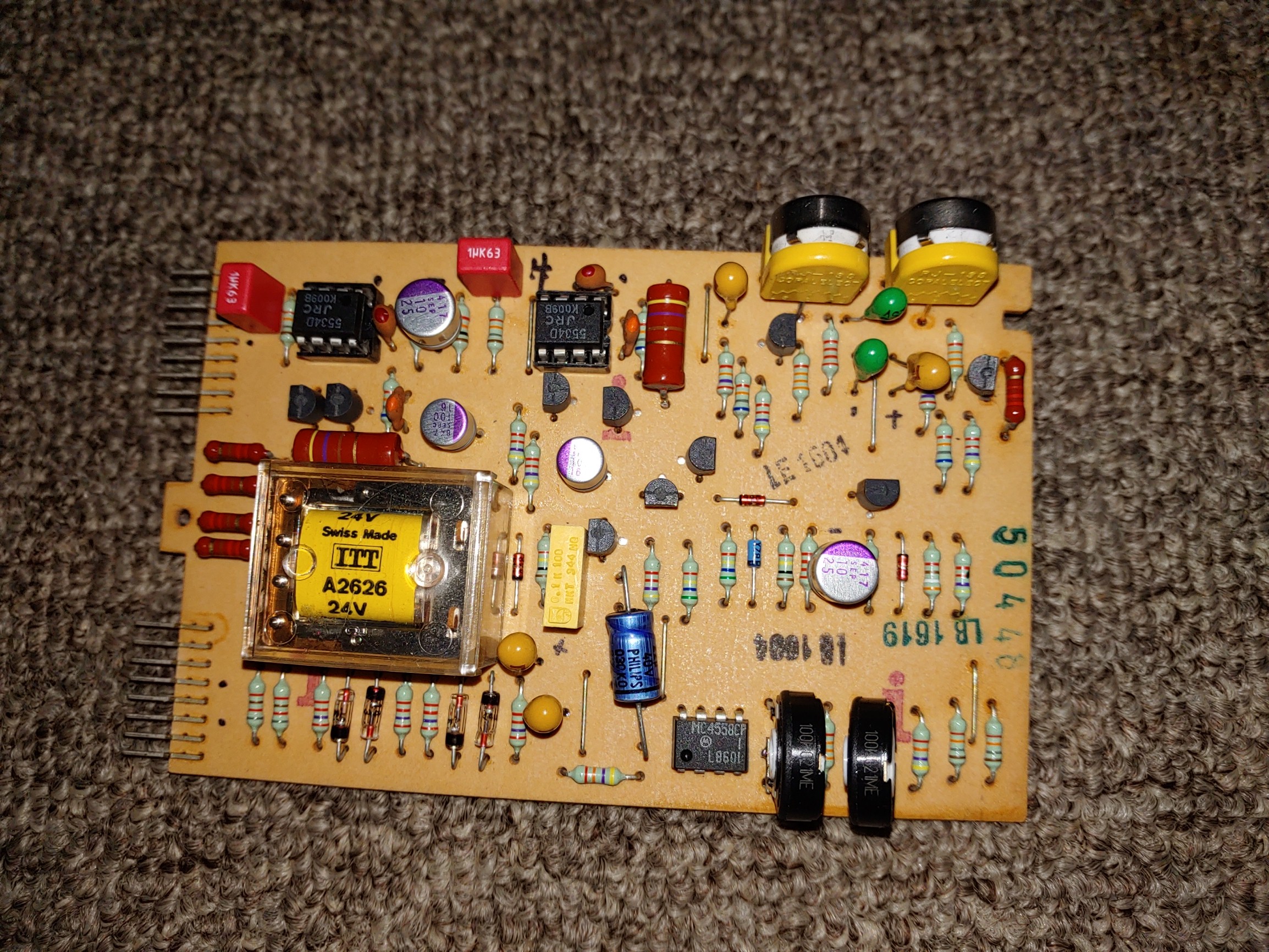

Tape drive control boad before and after upgrade

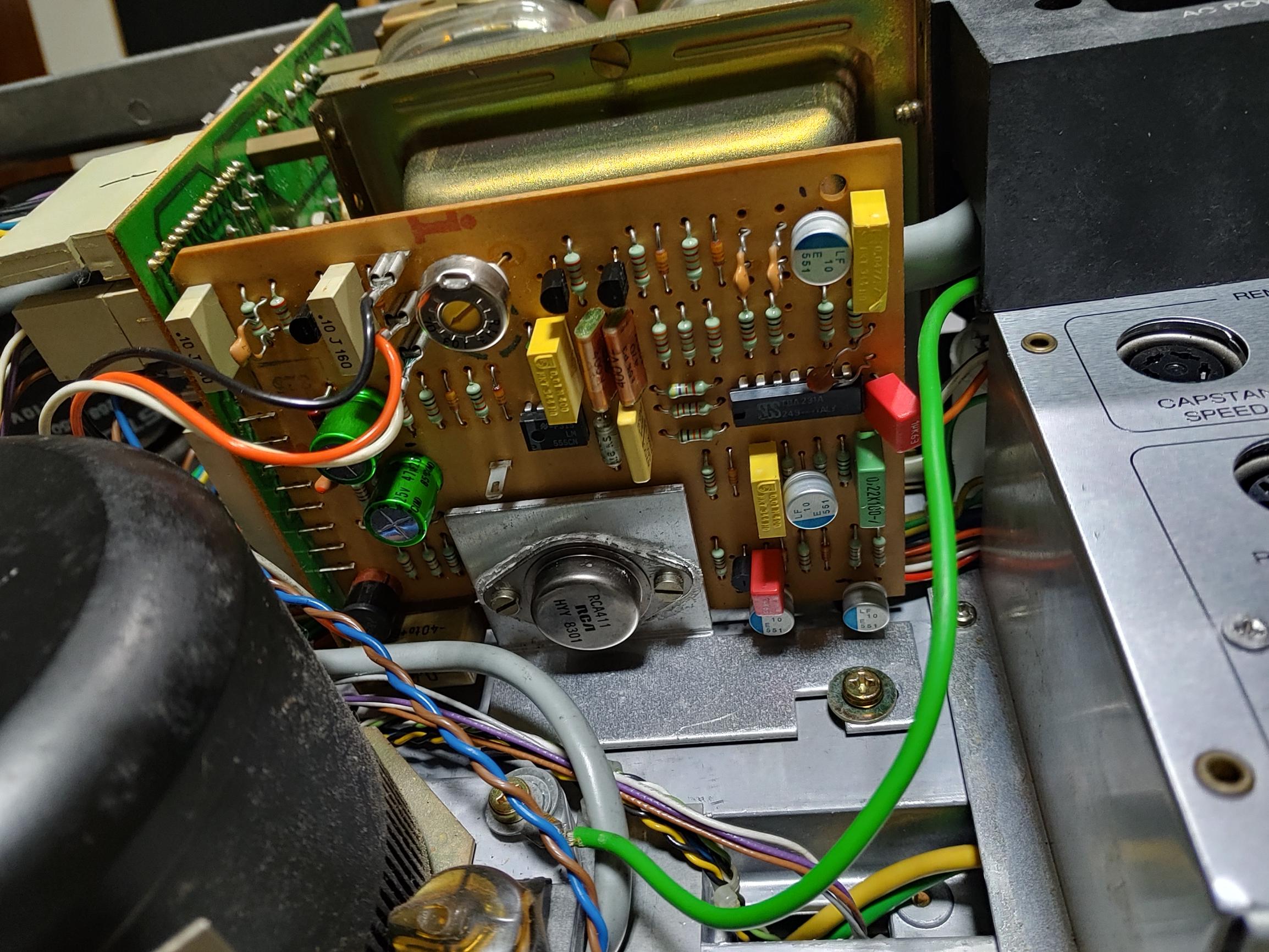

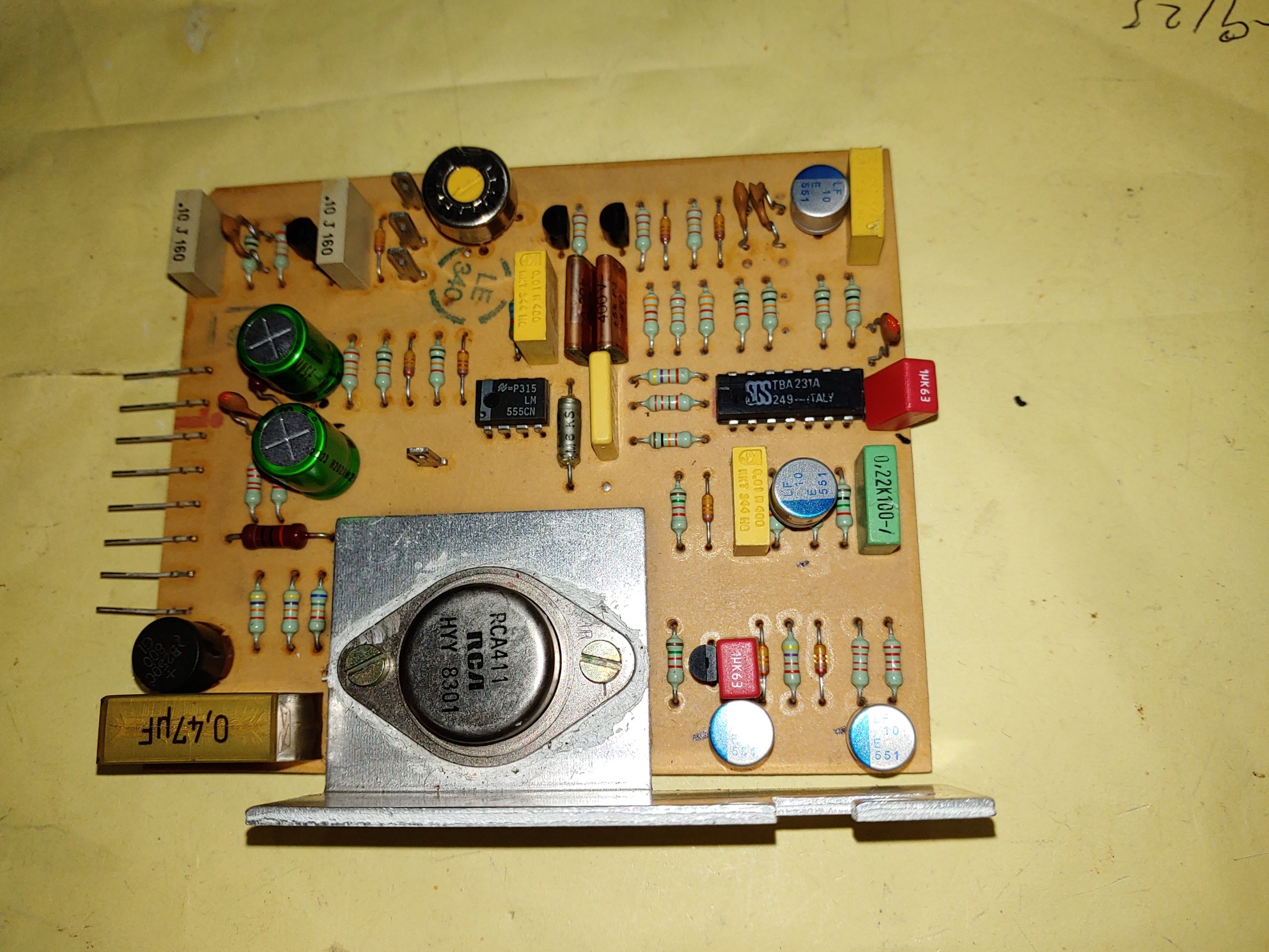

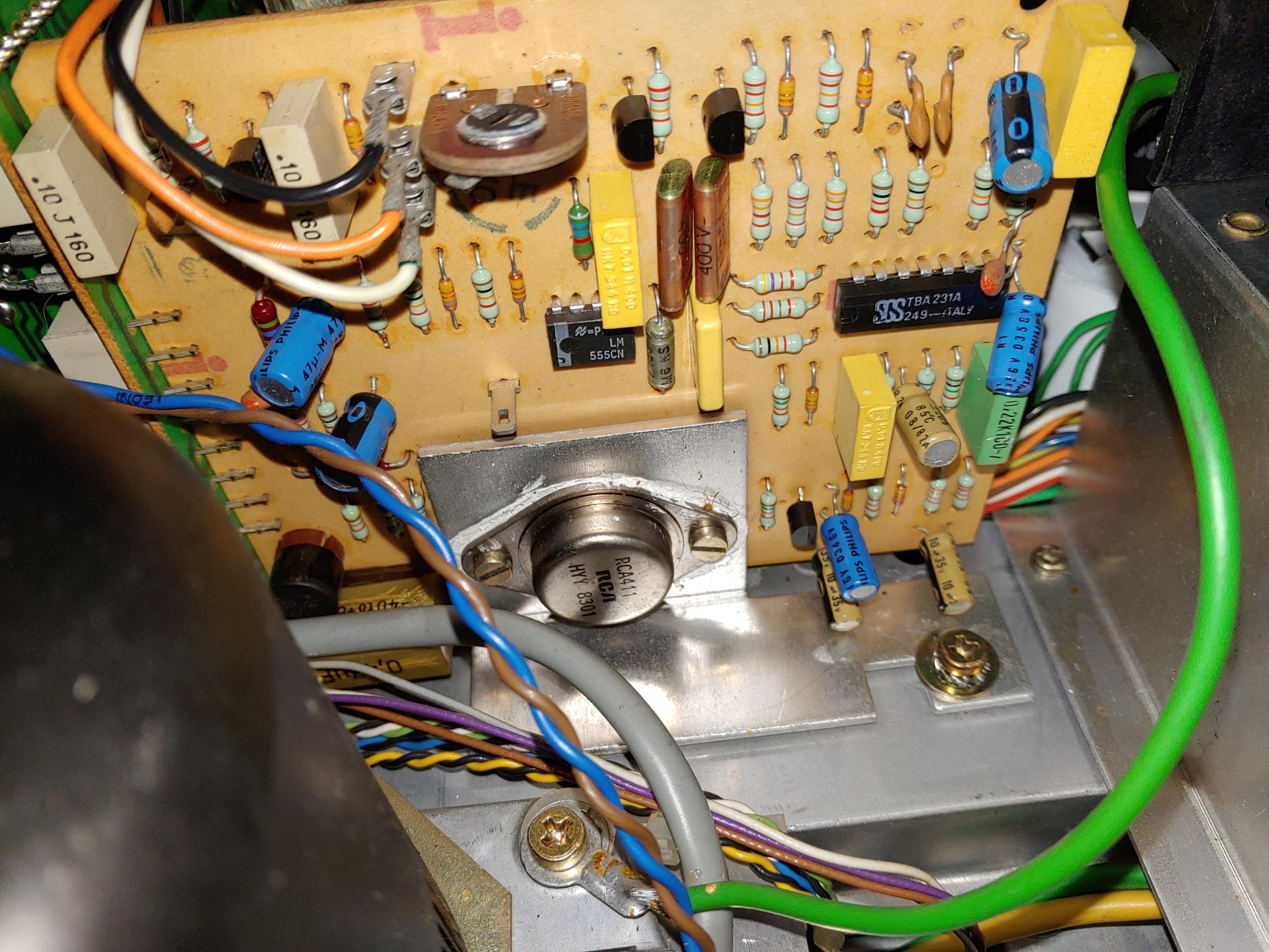

 capstan motor drive board before and after upgrade



fully upgraded IN/OUT pannel ( ext.EQ balance out put is directly connecteted to reproduce head )

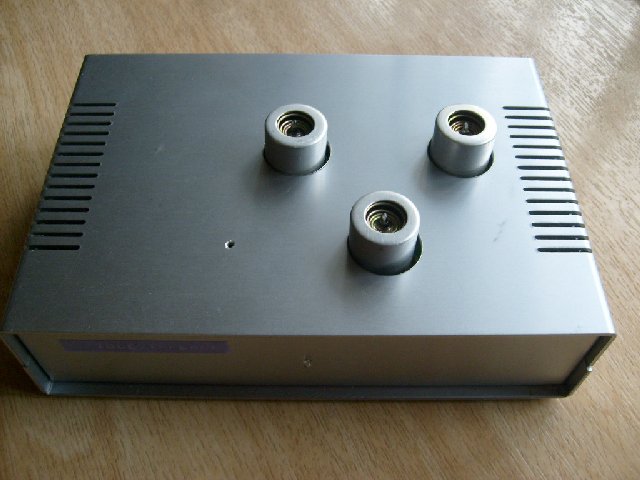

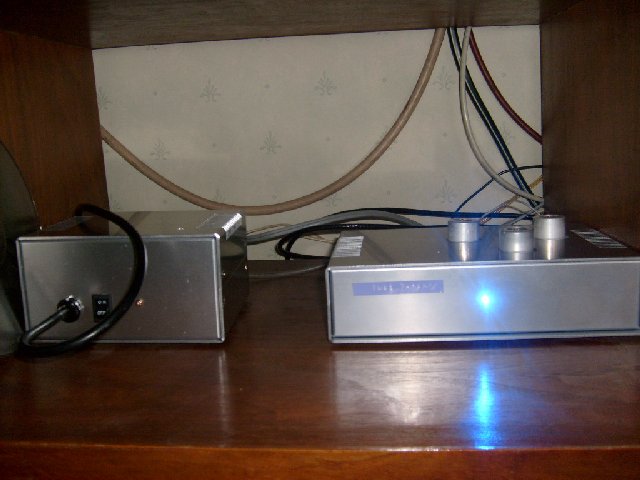

tube type external tape head amp with seperate power supply (  ECC83 : 3,  6X4 :1 ) .

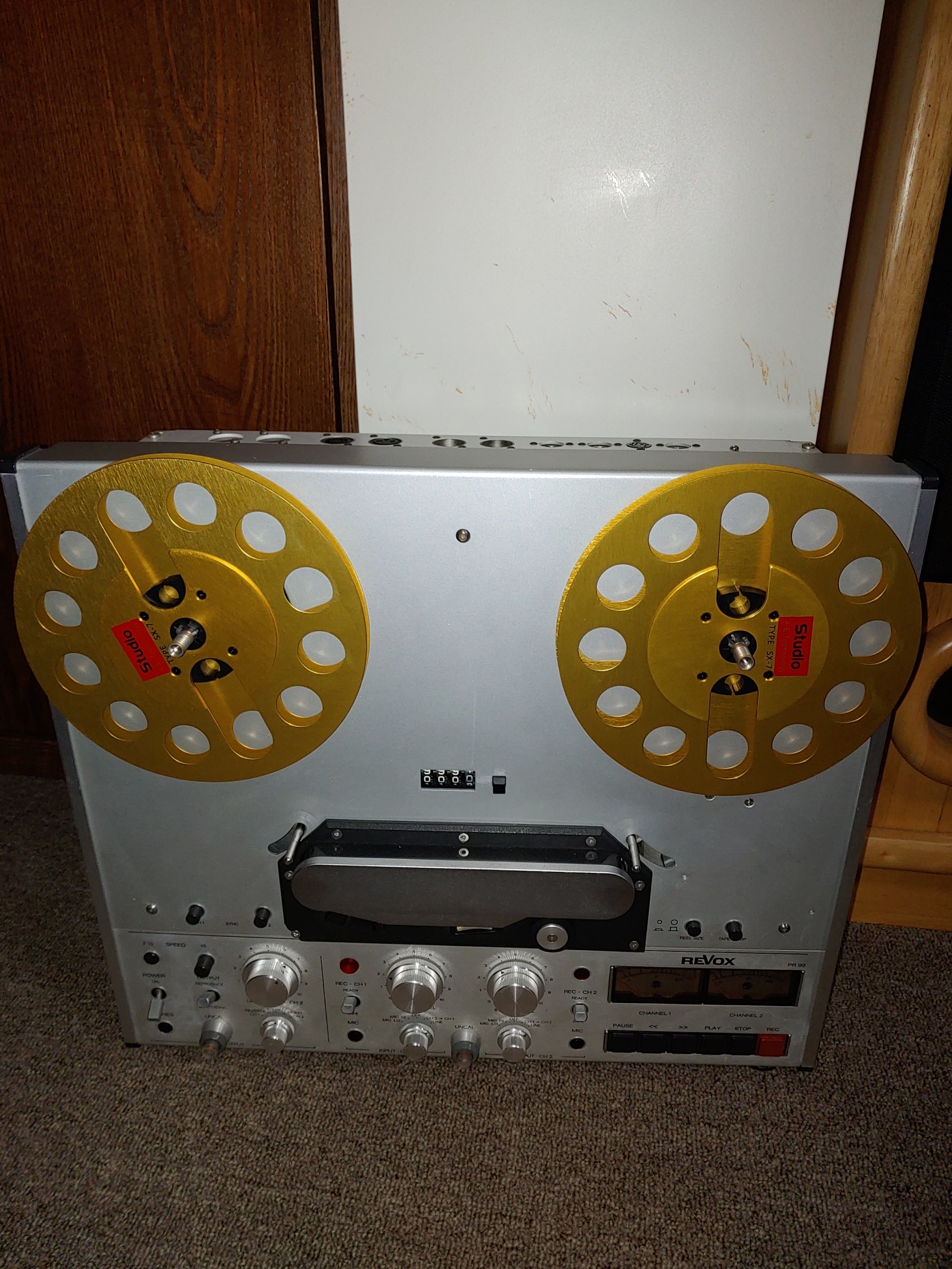

 all finished revox B77 and PR99
