OPPO udp 203/205 OCXO/TCXO installation guide

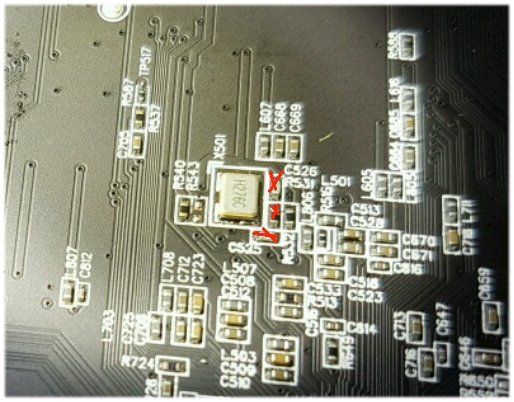

1. Take out 27 MHz clock and 3 other components

C525,C526,R531

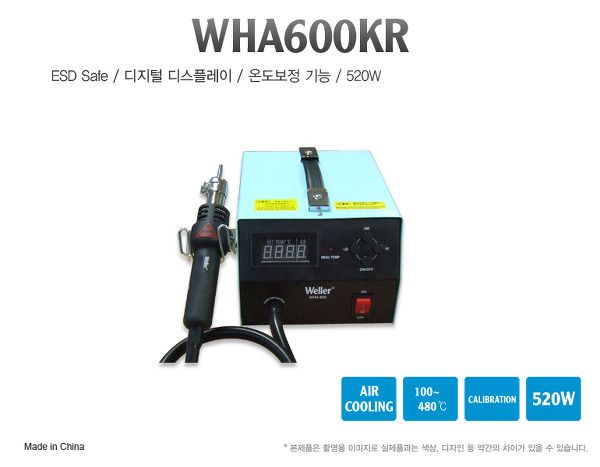

Use only good quality hot air gun such as Weller WHA 600











2. install OCXO /TCXO clock board on the main board .

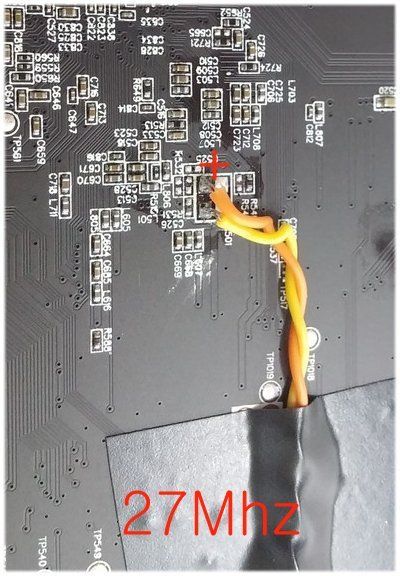

3. make wiring as indicated in picture .

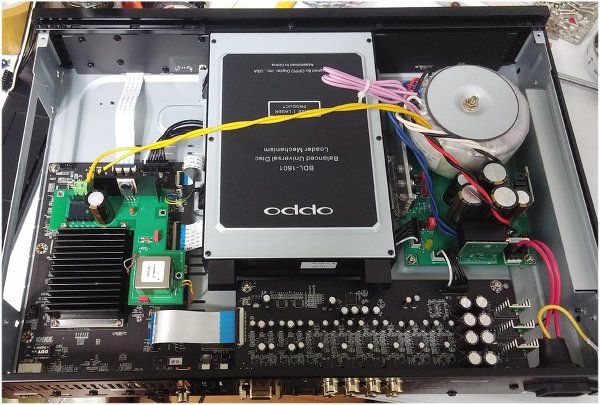

4. get the AC4.5V wire from Linear Power supply ( yellow wires )

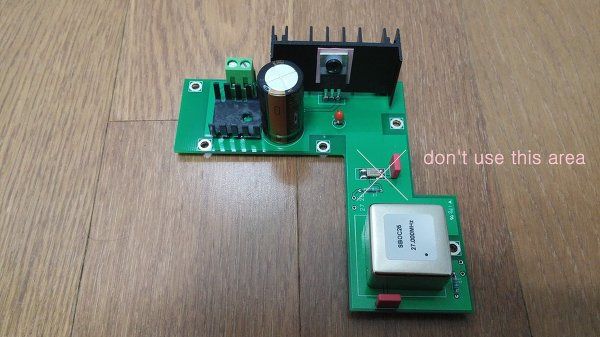

Don’t use 25 MHz clock area



( I found out later that 25 MHz clock is only used for BD ROM drive mechanical function )
